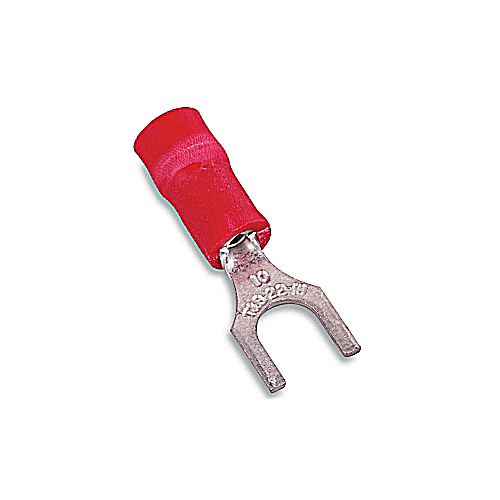

ABB TV18-6F-XV Catamount Fork Terminal 22 to 16 AWG #6

Product Description

The ABB TV18-6F-XV is a vinyl insulated fork terminal designed for wire range 22 to 16 AWG. This component features a #6 stud size and is manufactured by Catamount / Thomas & Betts. It is suitable for connecting round conductors, enhancing safety and ease in electrical installations.

• Molded funnel entry insulator ensures a secure connection.
• Electro-tin plated copper provides corrosion resistance.
• Rated for a maximum voltage of six hundred volts.

Product Highlights

This fork terminal is ideal for use in various electrical applications, providing reliable connectivity.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV18-6F-XV

Technical Specifications

• Wire Size: 22 to 16 AWG
• Stud Size: #6
• Material: Copper
• Finish: Electro-Tin Plated
• Voltage Rating: 600 V
• Temperature Rating: 75 degrees C
• Length: 0.866 inches
• Color: Red
• Insulation Material: PVC
• Barrel Size: 0.067 inches ID x 0.157 inches OD
• Tongue Size: 0.252 inches W x 0.03 inches THK
• Tongue Type: Fork
• Standards/Approvals: UL94 V-0 Flammability Rated
