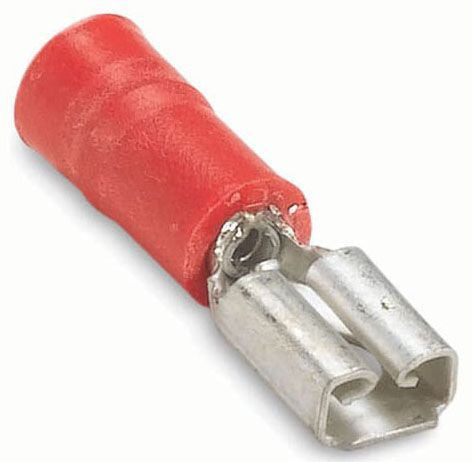

Abb TV18-250FD-XV Female Disconnect Terminal 22-16 Awg

Product Description

The ABB TV18-250FD-XV is a female disconnect terminal designed for reliable electrical connections in control wiring and panel assembly applications. This terminal accepts wire gauges in the 22-16 AWG range, making it suited for low-voltage signal and control circuits. It is the type of component installed by licensed electricians and panel technicians during new construction, equipment assembly, or service work where quick-disconnect terminations are required. The compact form factor fits standard wiring harness and terminal block configurations commonly found in industrial and commercial electrical enclosures.

This female disconnect terminal is used in residential and commercial electrical panels, control cabinets, and automated equipment where secure, removable wire connections are needed. The 22-16 AWG wire range covers the conductor sizes typical in control and instrumentation wiring. It is appropriate for use in low-voltage control circuits and is installed during panel wiring, harness assembly, or field service by qualified electrical trade professionals.

Key Features

• Female disconnect terminal style for quick, removable electrical connections
• Compatible wire range of 22-16 AWG covers common control and signal conductor sizes
• Compact package dimensions suitable for high-density panel and enclosure installations
• Lightweight at 0.63 pounds per package, supporting easy handling during installation

Compatibility

Designed as an OEM-style female disconnect terminal for use in low-voltage control wiring applications accepting 22-16 AWG conductors. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating or removing any disconnect terminal. Use a calibrated crimping tool rated for the 22-16 AWG range to ensure a secure mechanical and electrical connection. Do not exceed the rated wire gauge range, as undersized or oversized conductors can result in a loose or damaged termination.

Technical Specifications

• Wire Range: 22-16 AWG
• Terminal Gender: Female
• Package Dimensions (L x W x H): 10.82 inches x 7.81 inches x 4.96 inches
• Package Weight: 0.63 pounds
• UPC: 72849414426

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV18-250FD-XV
