Abb TV18-10R-XV vnyl insul rng term 22-16 no10 r

Product Description

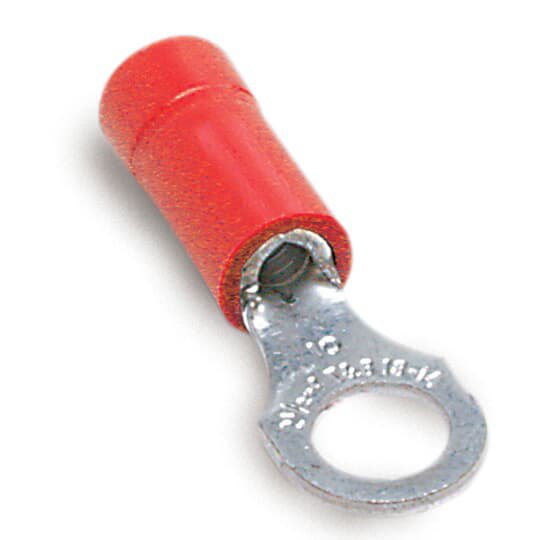

The ABB TV18-10R-XV is a ring terminal connector designed for secure and reliable wire terminations. This circular ring connector is suitable for 16-22 AWG wires and features a crimp termination. It is insulated with vinyl for added protection. Ideal for various electrical applications requiring a dependable connection.

• Molded Funnel Entry Insulator
• Brazed Seam
• Internal Barrel Serrations

Product Highlights

Insulated vinyl ring terminal ensures a secure electrical connection for wire range 22-16 and stud size #10.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV18-10R-XV

Technical Specifications

• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: ABB Electrification (Thomas and Betts)
• Wire Gauge: 16-22 AWG
• Packaging: Bulk
• Insulation: Insulated
• Part Status: Active
• Color: Red
• Terminal Type: Circular
• Contact Material: Copper Alloy
• Stud/Tab Size: 10 Stud
• Contact Finish: Tin
• Mounting Type: Free Hanging (In-Line)
• Material - Insulation: Vinyl
• Angle: Straight Straight
• Brand: Sta-Kon by ABB
• Insulation Type: Vinyl
• Manufacturer Part Number: TV18-10R-XV
• Primary Type: Ring
• Series: TV10 Series
• Special Features: Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations
• Stud Size: 0.190 in
• Type: Ring Terminal
• Wire Size: 20-16 AWG
• Barrel Type: Brazed Seam
• Conductor Size: 22-16 AWG
• Insulation Material: PVC
• Material: Copper
• Standard: UL E9809
• Temperature Rating: 75 degrees C
• Voltage: 600 Volt
• Finish: Electro Tin Plated
• Used With: Round Conductors
