Abb TV14-8R-XV Ring Terminal 16-14 Awg 900 Pack

Product Description

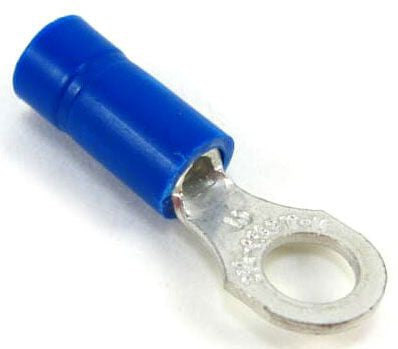

The ABB TV14-8R-XV is a ring terminal designed for securing 16-14 AWG wire to threaded studs and binding posts in electrical termination applications. Ring terminals in this gauge range are a standard solution for creating reliable, low-resistance connections at control panels, junction boxes, motor leads, and field wiring termination points. This terminal is sold in a 900-piece pack, making it well suited for contractors and service shops that terminate high volumes of connections on a regular basis. The design follows conventional ring lug geometry, accepting a bolt or screw through the center eye to lock the conductor in place.

This terminal is applicable across residential, commercial, and light industrial electrical work wherever 16-14 AWG conductors need a secure mechanical and electrical termination point. Common install scenarios include control panel wiring, equipment grounding connections, HVAC low-voltage wiring terminations, and general branch circuit control wiring. The 900-piece pack quantity is practical for wholesale stocking and service van supply.

Key Features

• Rated for 16-14 AWG wire range, covering common control and light power conductor sizes
• Ring lug geometry provides a secure bolt-on termination that resists pull-out
• 900 terminals per pack reduces per-unit cost for high-volume termination work
• Compact form factor suitable for tight panel and junction box installations

Compatibility

Designed as a standard ring terminal for use with 16-14 AWG conductors terminated to threaded studs, screws, or binding posts in typical electrical and control wiring applications.

Installation Notes

Ring terminals in this gauge range are typically installed by licensed electricians or HVAC technicians using a ratcheting or die-set crimping tool matched to the terminal barrel size. Always de-energize the circuit and verify absence of voltage before terminating conductors. Inspect the crimped connection for a secure, uniform crimp before torquing the fastener. Follow applicable NEC guidelines for conductor termination and connector selection.

Technical Specifications

• Wire Range: 16-14 AWG
• Pack Quantity: 900 per pack
• Weight: 0.190 pounds per 100 pieces
• Package Dimensions: 10.820 inches x 7.810 inches x 4.960 inches

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV14-8R-XV
