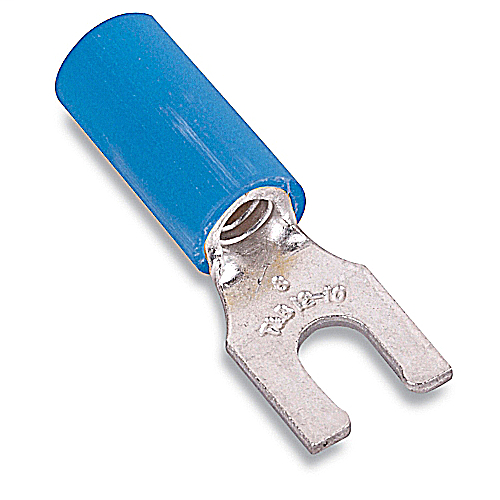

ABB TV14-8F-XV Catamount Vinyl Insulated Fork Terminal 16 to 14 AWG #8

Product Description

The ABB TV14-8F-XV is a vinyl insulated fork terminal designed for wires ranging from 16 to 14 AWG. This terminal features a length of .899 inches and a width of .310 inches, making it suitable for a variety of electrical connectors. The terminal is constructed from electrotinned copper which ensures durability and reliability. It is designed for a maximum insulation of .170 inches and is compatible with a #8 bolt size. This component is ideal for applications that require secure connections in electrical wiring systems.

• Suitable for wire sizes 16 to 14 AWG
• Electrotinned copper construction
• Compatible with #8 bolt size

Product Highlights

This terminal provides a molded funnel entry insulator and internal barrel serrations for better grip and stability during installation.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Catamount / Thomas & Betts

Technical Specifications

• Type: Short Sleeve
• Material: Copper
• Voltage Rating: 600 V
• Temperature Rating: 75 degrees C
• Stud Size: #8
• Wire Size: 16 to 14 AWG
• Color: Blue
• Finish: Electro Tin Plated
• Insulation Material: PVC
• Barrel Size: 0.091 in ID x 0.177 in OD
• Tongue Size: 0.31 in W x 0.031 in THK
