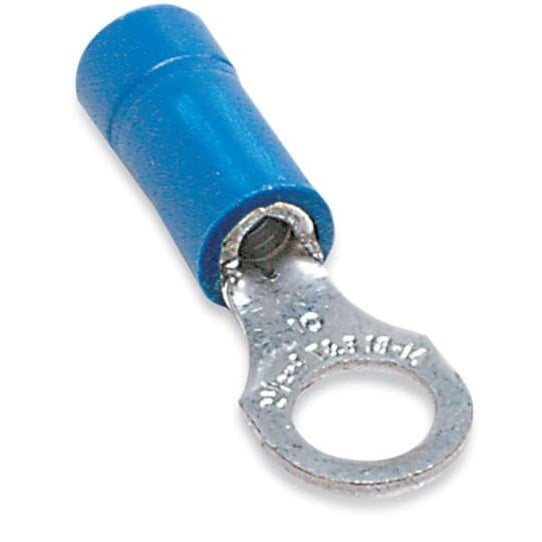

Abb TV14-516R-L Sta-Kon insulated vinyl ring terminal 5/16

Product Description

The ABB TV14-516R-L Sta-Kon insulated vinyl ring terminal is designed for wire ranges 16-14 and a stud size of 5/16. It features a molded funnel entry insulator, brazed seam, and internal barrel serrations. This ring terminal is suitable for creating secure and reliable connections in various electrical applications.

• Molded Funnel Entry Insulator
• Brazed Seam
• Internal Barrel Serrations

Product Highlights

Insulated vinyl ring terminal with funnel entry, brazed seam, and internal barrel serrations for secure wire connections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV14-516R-L
• Country of Origin: Taiwan, Province Of China

Technical Specifications

• Brand: Sta-Kon by ABB
• Color: blue
• Family Name: Sta-Kon and Catamount Terminal
• Insulation Type: Vinyl
• Manufacturer Part Number: TV14-516R-L
• Numeric ID: 2510411
• Primary Type: Ring
• Special Features: Molded Funnel Entry Insulator. Brazed Seam. Internal Barrel Serrations
• Stud Size: 5/16 in
• Type: Ring Terminal
• UPC Code: 786209937728
• Wire Size: 16-14 AWG
• Category: Connectors, Interconnects
• Terminals: Ring Connectors
• Termination: Crimp
• Manufacturer: ABB Electrification (Thomas and Betts)
• Packaging: Bulk
• Insulation: Insulated
• Part Status: Active
• Terminal Type: Circular
• Contact Material: Copper
• Material - Insulation: Vinyl
• Mounting Type: Free Hanging (In-Line)
• Conductor Size: 16-14 AWG
• Flamability Class: Rated V-0 Per UL94
• Material: Copper
• Standard: UL E9809
• Temperature Rating: 75 degrees C
• Voltage: 600 Volt
• Finish: Electro Tin Plated
• Voltage Rating: 600 V
• Item Type: Vinyl Insulated Ring Terminal
