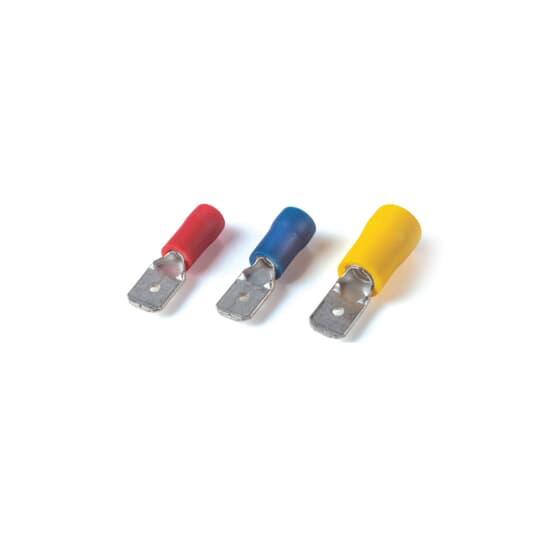

ABB TV14-250MD-XV Catamount Male Disconnect 16 to 14 AWG Blue

Product Description

The ABB TV14-250MD-XV is a vinyl insulated male disconnect designed for conductor sizes ranging from 16 to 14 AWG. This product features a blue brass sleeve that ensures durability and reliability in electrical connections. The disconnect is suitable for various applications within both commercial and residential wiring systems.

• Easy entry copper insulation sleeve for quick connection.
• Constructed of brass with electro-tin plating for enhanced conductivity.
• Rated for a maximum voltage of 300 VAC and a temperature of 105 degrees Celsius.

Product Highlights

This male disconnect is a part of the 250 series, designed to meet UL standards. It offers reliable performance and is easy to install.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Catamount / Thomas & Betts

Technical Specifications

• Type: Insulated Male Disconnect
• Color: Blue
• Material: Brass
• Voltage Rating: 300 VAC
• Temperature Rating: 105 degrees C
• Conductor Size: 16 to 14 AWG
• Tab Size: 0.25 in W x 0.032 in THK
• Dimensions: 0.858 in L
• Standards: UL E66716
