Abb TV14-10R-XV Ring Terminal 16-14 Awg

Product Description

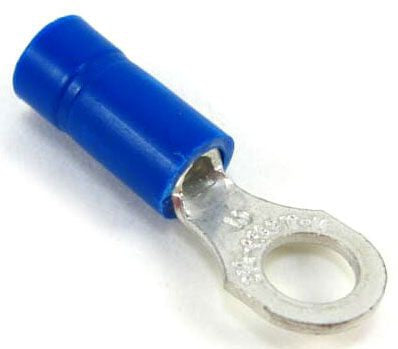

The ABB TV14-10R-XV is a ring terminal designed for use with 16 to 14 AWG wire, providing a secure, low-resistance connection at screw or stud termination points. Ring terminals in this class are used to fasten conductors to grounding lugs, bus bars, and equipment terminals where a captive, vibration-resistant connection is required. Electricians and panel technicians install these during new construction, retrofit wiring work, and equipment servicing. The TV14-10R-XV suits applications where wire pull-out resistance and consistent contact integrity are priorities.

This ring terminal is suited for residential and light commercial electrical work, including control panel wiring, motor terminations, and grounding connections. The 16-14 AWG wire range makes it compatible with common branch circuit and control circuit conductors used in HVAC systems, electrical panels, and equipment control wiring installations where a reliable mechanical and electrical bond is needed at a fixed stud or screw point.

Key Features

• Accepts 16 to 14 AWG conductors for a broad range of wiring applications
• Ring-style barrel provides captive, vibration-resistant stud or screw termination
• Designed for consistent, low-resistance electrical contact at connection points
• Compact form factor suited for use in panels, junction boxes, and equipment enclosures

Compatibility

Designed as an OEM-style ring terminal for use with 16 to 14 AWG copper conductors in standard electrical termination applications.

Installation Notes

Ring terminals of this type are installed by licensed electricians in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductor. Use a calibrated crimping tool rated for the wire gauge and terminal type to ensure a gas-tight crimp; never solder a crimp terminal as a substitute for proper tooling. Confirm the stud or screw size matches the ring terminal opening before securing the connection.

Technical Specifications

• Wire Range: 16-14 AWG
• Terminal Type: Ring
• Package Weight: 6.25 pounds
• Package Dimensions: 10.82 inches x 7.81 inches x 4.96 inches
• UPC: 72849414411

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV14-10R-XV
