Abb TV14-10F-XV Crimp Terminal 16-14 Awg 900 Pack

Product Description

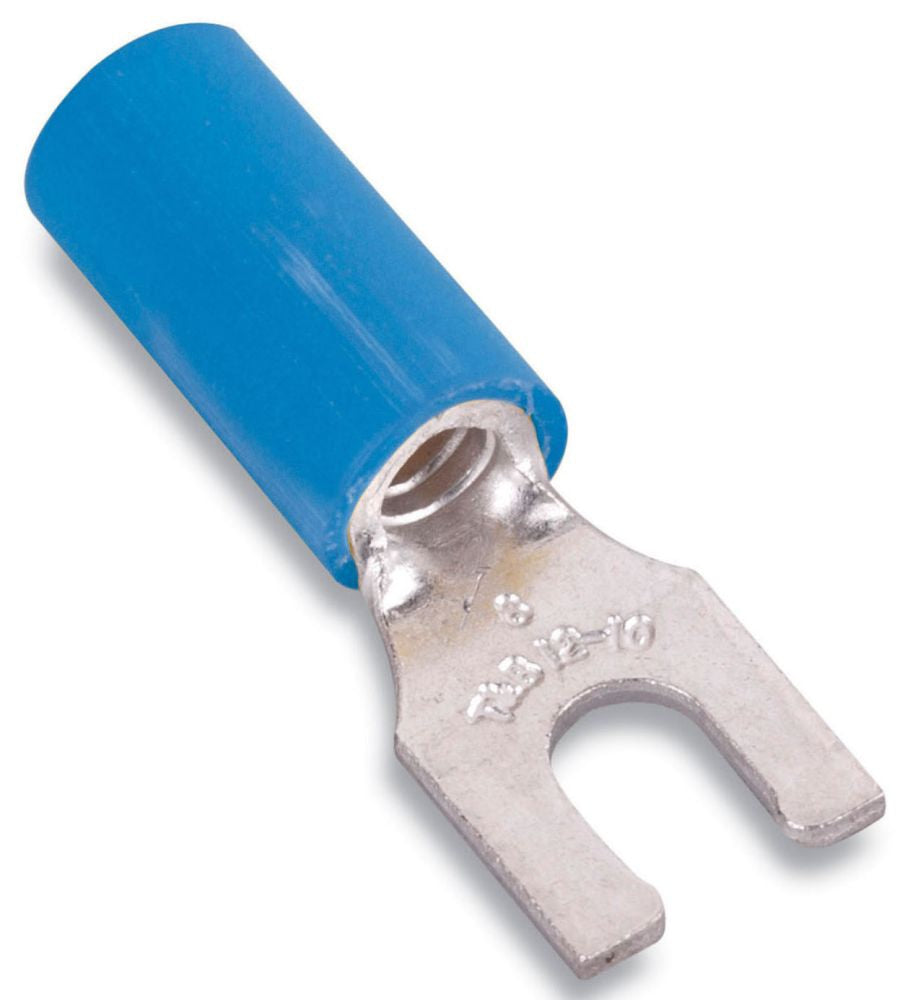

The ABB TV14-10F-XV is a crimp-style terminal connector rated for 16 to 14 AWG wire. It is used to terminate stranded or solid conductors in control panels, junction boxes, and field wiring applications. Electricians and panel builders install this type of terminal when making reliable, vibration-resistant wire terminations without soldering. The connector is sold in a 900-piece pack, making it suitable for production wiring environments and large installation jobs where consistent, repeatable terminations are required.

This terminal is applicable in residential, commercial, and light industrial electrical work. It fits standard crimp tooling for the 16 to 14 AWG range. Common use cases include control wiring, motor circuit terminations, and instrumentation panel assembly where a secure mechanical connection to a lug or stud is needed. The 900-piece pack format supports high-volume panel shops and electrical contractors who need consistent inventory on hand.

Key Features

• Crimp termination style — no soldering required for installation
• Compatible with 16 to 14 AWG wire gauge range
• 900 pieces per pack for high-volume wiring applications
• Package dimensions of 10.6 inches x 10.1 inches x 7.9 inches for standard shelf storage
• Pack weight of 5 pounds per 1000 pieces for easy quantity estimation

Compatibility

Designed as an OEM-style crimp terminal for use with standard 16 to 14 AWG crimp tooling in electrical panel and field wiring applications.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC guidelines. De-energize all circuits before terminating conductors. Use a calibrated crimp tool rated for the 16 to 14 AWG range to ensure proper compression and pull-out strength. Inspect each crimped terminal visually before closing the panel or enclosure.

Technical Specifications

• Wire Gauge Range: 16 to 14 AWG
• Termination Type: Crimp
• Quantity per Pack: 900 pieces
• Pack Weight: 5 pounds per 1000 pieces
• Package Dimensions (L x W x H): 10.6 inches x 10.1 inches x 7.9 inches
• UPC: 72849414419

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV14-10F-XV
