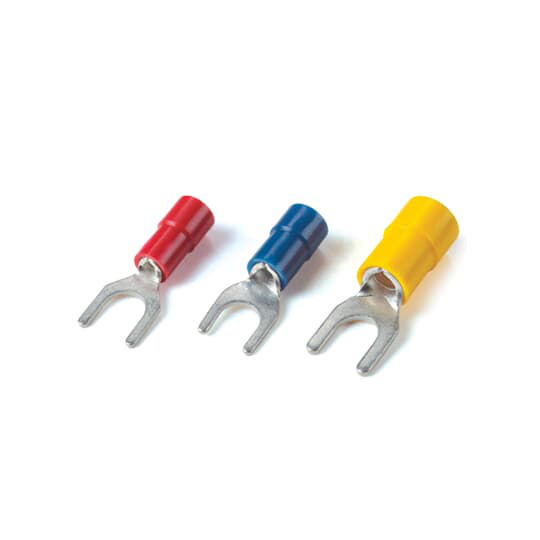

ABB TV14-10F-XV Catamount 16 to 14 AWG #10 Stud Blue Electrotinned Copper Vinyl Insulated Fork Terminal

Product Description

The ABB TV14-10F-XV is a vinyl insulated fork terminal made from electrotinned copper. It supports wire sizes ranging from sixteen to fourteen AWG and features a #10 stud size. The terminal measures 0.899 inches in length and has a width of 0.310 inches. It provides a reliable connection and is suitable for a variety of electrical applications.

• Supports wire sizes 16 to 14 AWG.
• Made from copper with electrotinned finish.
• Rated for 600 volts and has a temperature rating of 75 degrees Celsius.

Product Highlights

The ABB TV14-10F-XV features a molded funnel entry insulator and internal barrel serrations for enhanced grip during installation. It is UL approved and designed for use with round conductors.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV14-10F-XV

Technical Specifications

• Material: Copper
• Finish: Electro Tin Plated
• Color: Blue
• Stud Size: #10
• Wire Size: 16-14 AWG
• Length: 0.899 inches
• Voltage Rating: 600 V
• Temperature Rating: 75 degrees Celsius
• Barrel Size: 0.091 inches ID x 0.177 inches OD
• Tongue Size: 0.31 inches W x 0.031 inches THK
• Standards/Approvals: UL E9809
