ABB TV14-10BL-XV VIN INSUL BLADE TE

Product Description

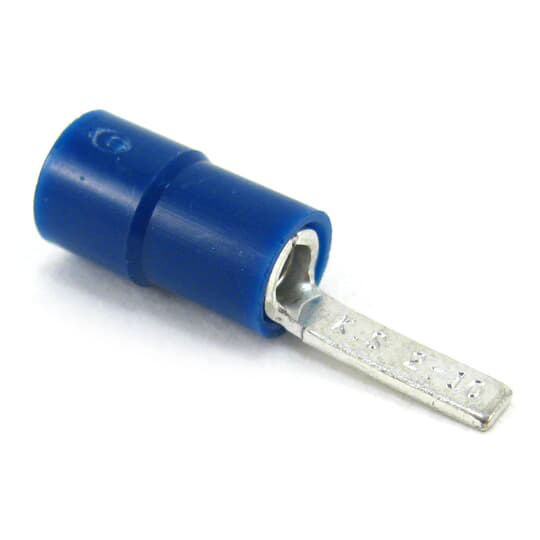

ABB TV14-10BL-XV is an insulated vinyl blade terminal designed for use with copper conductors. It supports a wire range of sixteen to fourteen American Wire Gauge (AWG). This terminal is suitable for DIN-style blade terminal blocks. The overall length is zero point eight one nine inches. It features a molded funnel entry insulator for easy installation.

• Wire range: 16-14 AWG
• Voltage rating: 600 VAC
• Producer standard: UL E9809

Product Highlights

This product is intended for reliable electrical connections in commercial applications.

Product Information

Standard Information

• Application: For use in DIN-style blade terminal blocks
• Finish: Electro-Tin Plated

Technical Specifications

• Material: Copper
• Temperature Rating: 75 degrees C
• Blade Length: 0.394 inches
• Overall Length: 0.819 inches
• Blade Width: 0.094 inches
• Diameter: 0.177 inches
• Standards/Approvals: UL94 V-0 Flammability Rated
• MPN: TV14-10BL-XV
