Abb TV10-8R-XV Ring Terminal 12-10 Awg 900 Pack

Product Description

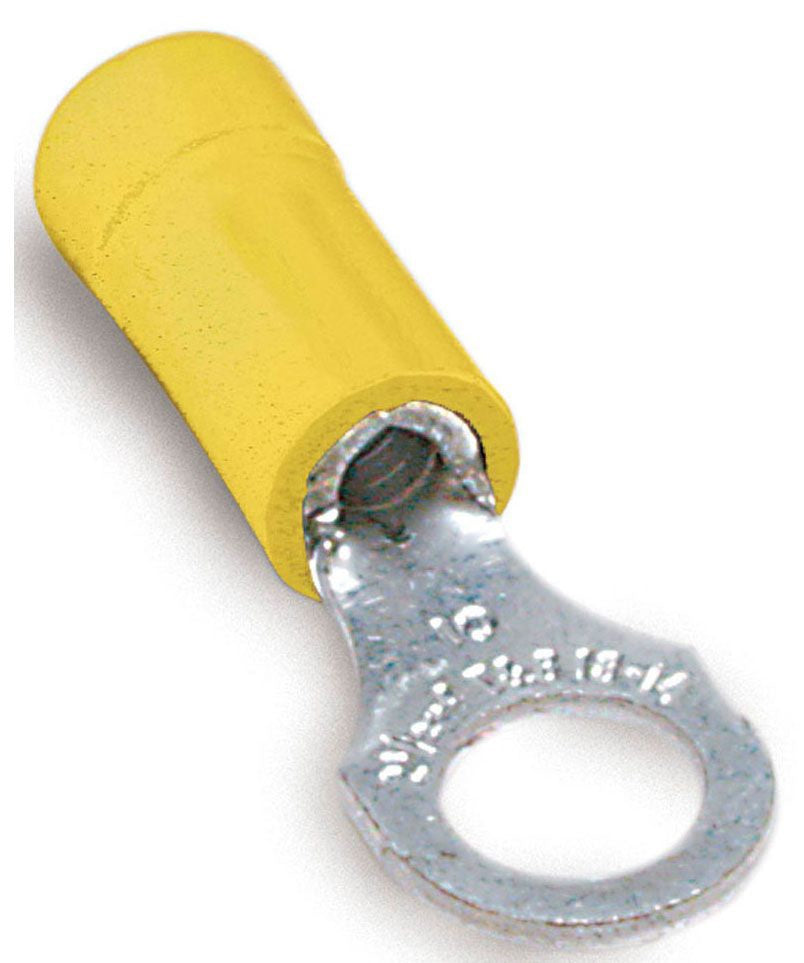

The ABB TV10-8R-XV is a ring terminal designed for 12-10 AWG wire connections. Ring terminals provide a secure, loop-style electrical termination point that bolts directly to a lug, stud, or terminal block. This terminal is suited for use in electrical panels, control wiring, and equipment interconnects where a reliable mechanical and electrical connection is required. Licensed electricians and control wiring technicians are the primary installers. The TV10-8R-XV is sold in a 900-piece pack, making it a practical stock item for service vans and panel shops handling frequent termination work.

This ring terminal is appropriate for residential and commercial electrical work wherever 12 or 10 AWG conductors are terminated at a screw or stud connection. Common applications include panel wiring, motor control centers, junction box terminations, and HVAC equipment control wiring. The 900-count pack supports high-volume installation projects or ongoing service inventory needs.

Key Features

• Compatible with 12-10 AWG wire range for versatile termination use
• Ring-style barrel loop for secure stud or lug mounting
• 900 terminals per pack for volume installation and stocking
• Compact pack dimensions support easy storage and transport

Compatibility

Designed as a standard ring terminal for use with 12-10 AWG conductors in residential and commercial electrical termination applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any conductors. Use a calibrated crimping tool rated for the wire gauge and terminal series to ensure a proper mechanical and electrical crimp. Do not use open-barrel terminals on conductors that have not been stripped to the correct insulation-free length.

Technical Specifications

• Wire Range: 12-10 AWG
• Pack Quantity: 900 per pack
• Pack Weight: 5.630 pounds per 1000 pieces
• Pack Dimensions: 11.000 inches x 10.250 inches x 8.000 inches
• UPC: 72849414412

Standard Information

• Brand: ABB
• Manufacturer Part Number: TV10-8R-XV
