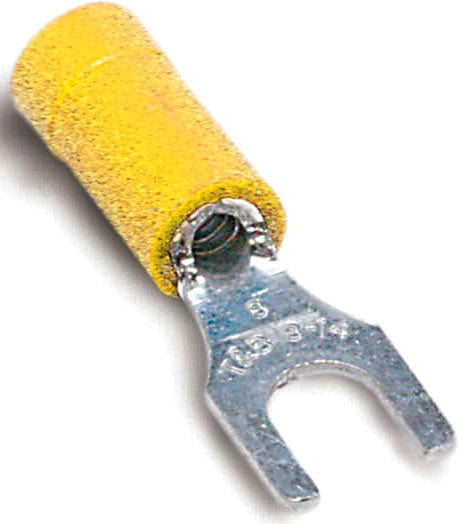

ABB TV10-8F-L T&B Vinyl Insulfork Terminal 12-10#8

Product Description

ABB TV10-8F-L is a fork terminal designed for use with conductors sized 12 to 10 AWG. It features a six hundred volt rating and is suited for various electrical applications. The terminal has a length of one point zero zero four inches and includes a brazed seam with a funnel entry and internal serration barrel. This construction helps secure a stable connection. The fork tongue has a width of 0.327 inches and thickness of 0.039 inches.

• Molded funnel entry insulator
• Internal barrel serrations for better conductivity
• Compatible with WT112M, CM2000A recommended tools

Product Highlights

The ABB TV10-8F-L offers reliable performance in electrical connections with its durable copper and electro-tin plated finish. It complies with CSA certification and UL94 V-0 flammability standards.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78620993755

Technical Specifications

• Barrel Size: 0.134 in ID x 0.252 in OD
• Color: Yellow
• Conductor Size: 12 to 10 AWG
• Finish: Electro-Tin Plated
• Length: 1.004 in
• Manufacturer Part Number: TV10-8F-L
• Material: Copper
• Series: T Series
• Specifications: Vinyl Insulation
• Standards/Approvals: CSA Certified | UL94 V-0 Flammability Rated | UL File No. E9809
• Stud Size: #8
• Temperature Rating: 75 deg C
• Tongue Size: 0.327 in W x 0.039 in THK
• Tongue Type: Fork
• Voltage Rating: 600 V
