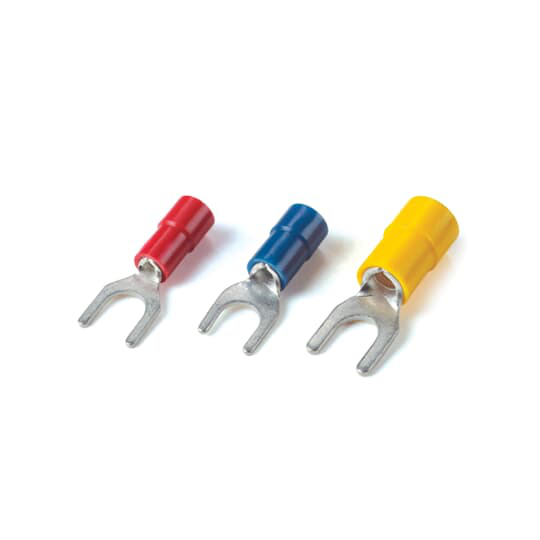

ABB TV10-14F-XV Catamount TV10-14F-XV 12 to 10 AWG 1/4 Inch Stud Yellow Electrotinned Copper Vinyl Insulated Fork Terminal

Product Description

ABB TV10-14F-XV is a vinyl insulated fork terminal designed for use with 12 to 10 AWG wire. This terminal features a one-quarter inch stud size and is made from electrotinned copper for better conductivity and corrosion resistance. The compact design allows for efficient wire termination in various applications.

• Suitable for round conductors.
• Maximum operating voltage of 600 volts.
• Temperature rated up to 75 degrees Celsius.

Product Highlights

This product provides reliable connections and features molded funnel entry insulators and internal barrel serrations for improved performance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Catamount / Thomas & Betts

Technical Specifications

• Stud Size: 1/4 in
• Wire Size: 12 to 10 AWG
• Material: Copper
• Finish: Electro-Tin Plated
• Insulation Material: PVC
• Voltage Rating: 600 V
• Temperature Rating: 75 degrees C
• Barrel Size: 0.134 in ID x 0.252 in OD
