Abb TSM1610CSCU Metering Socket Ring 100A 16/32

Product Description

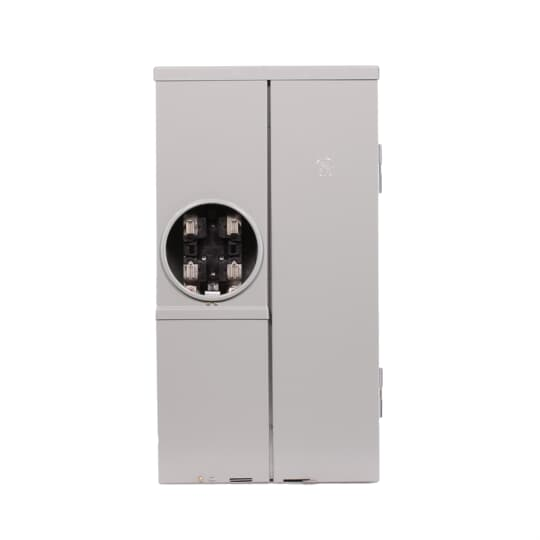

The ABB TSM1610CSCU is a meter socket designed for ringless metering applications in residential and light commercial electrical distribution systems. This unit supports a 100-amp main breaker configuration with a 10,000-amp interrupt capacity (10K AIC), accommodating both underground (UG) and overhead (OH) service entry. The socket is available in 16- and 32-position configurations, making it well suited for single-gang and multi-gang meter center installations. Licensed electricians install this device as part of a service entrance assembly where utility company metering equipment is required.

This metering socket is intended for use in ringless meter center assemblies, commonly installed at the utility service point in residential subdivisions, multi-tenant properties, and light commercial applications. The underground and overhead dual-service compatibility allows the installer to adapt to local utility requirements and site conditions. The 16/32 position designation indicates the number of circuit positions supported within the associated meter center configuration. This socket is designed to comply with EUSC (Electrical Utility Service Council) specifications at 100 amps.

Key Features

• 100-amp main breaker rating with 10,000-amp interrupt capacity (10K AIC)
• Compatible with both underground and overhead service entrance configurations
• Ringless meter socket design for utility-approved metering applications
• 16 and 32 position configurations supported within the meter center assembly
• EUSC 100A compliance for utility service requirements

Compatibility

Designed as an OEM-style replacement and new-installation meter socket for ringless meter center assemblies requiring underground or overhead service entry at 100-amp EUSC ratings.

Installation Notes

Installation must be performed by a licensed electrician in accordance with NFPA 70 (NEC) and local utility interconnection requirements. Verify that utility power is de-energized and locked out at the service drop before handling any meter socket components. Confirm service entrance conductor sizing and conduit type meet local code requirements for the selected UG or OH configuration. Do not energize the socket until the utility meter has been seated and the utility has authorized service restoration.

Technical Specifications

• Amperage Rating: 100 amps
• Interrupt Capacity: 10,000 amps (10K AIC)
• Position Configuration: 16/32 position
• Service Entry Type: Underground and Overhead
• Meter Socket Type: Ringless
• EUSC Rating: 100 amps
• UPC: 783164198270

Standard Information

• Brand: ABB
• Manufacturer Part Number: TSM1610CSCU
