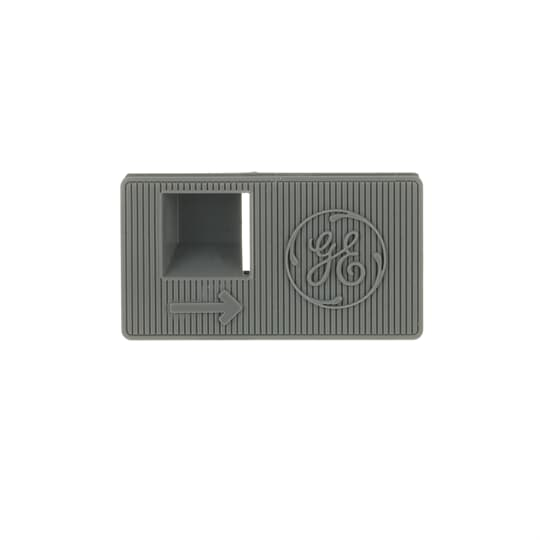

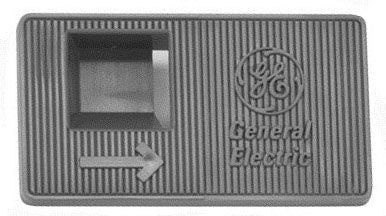

Abb TRL22 Load Center Door Latch Kit Top Feed

Product Description

The ABB TRL22 is a door latch kit designed for top-feed load centers. It provides a secure mechanical closure for the load center door, keeping the panel cover properly latched during normal operation and service intervals. This hardware-level component is a direct OEM-style replacement for installations where the original latch has worn, broken, or gone missing. Electricians working on residential or light commercial panel maintenance will find this kit a straightforward swap to restore proper door function and code-compliant enclosure integrity.

The TRL22 is intended for use with ABB load centers configured in a top-feed arrangement. It is suited for residential panel installations where maintaining a secure, properly closing door is required for NEC compliance. This latch kit is typically installed during routine panel service, after storm or physical damage, or as part of a load center refurbishment.

Key Features

• OEM-style door latch hardware for ABB top-feed load centers
• Restores secure mechanical closure to load center enclosures
• Supports code-compliant panel door retention per NEC enclosure requirements
• Kit format includes components needed for a complete latch replacement

Compatibility

Designed as an OEM-style replacement latch kit for ABB top-feed load center enclosures. Consult the load center documentation or ABB product literature to confirm fitment with your specific panel model before ordering.

Installation Notes

Installation should be performed by a licensed electrician. De-energize the load center and follow all applicable NEC lockout/tagout procedures before servicing the panel door or any enclosure hardware. Use standard hand tools for latch installation. Do not force the latch mechanism during installation, as improper seating can prevent the door from closing flush.

Technical Specifications

• UPC: 783164161045
• Application: Top-feed load center door latch replacement

Standard Information

• Brand: ABB
• Manufacturer Part Number: TRL22
