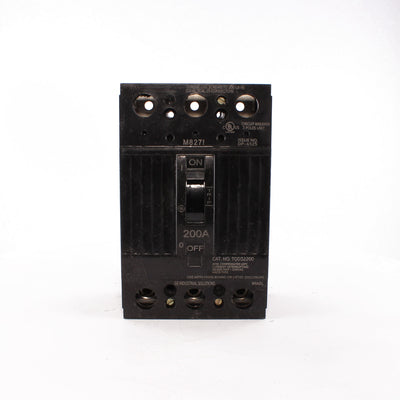

Abb TQD32200 TQD 3-Pole 240V 10K IC 200 Amp

Product Description

The ABB TQD32200 is a TQD 3-Pole 240V 10K IC 200 Amp thermal magnetic molded case circuit breaker and molded case switch. The device comes complete with Cu/Al line and load lugs. It has a 10 kA interrupting rating at 120/240 VAC.

• Suitable for Reverse Feed: Yes
• Continuous Current Rated: Standard
• Trip Style: Non-Interchangeable

Product Highlights

The ABB TQD32200 circuit breaker is a reliable solution for circuit protection. It is UL 489 Listed.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TQD32200
• Country of Origin: United States

Technical Specifications

• Category: Thermal Magnetic
• Product Line: Thermal Magnetic
• Trip Style: Non-Interchangeable
• Poles: 3
• Amperage: 200 A
• System Voltage: 120 Vac
• 120/240 Vac: 240 Vac
• Frame Type: Q-Line
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Trip Function: LI
• Continuous Current Rated: Standard
• Suitable for Reverse Feed: Yes
• Lugs: TCAL25
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• Wire Range (Cu/Al): (2) 1-300
• Brand: GE GENERAL ELECTRIC ABB
• MPN: TQD32200
• Country of Origin: United States
• Brand Name: GE
• Item Name: Molded Case Circuit Breaker
• Series: Q-Line
• Number of Poles: 3
• Interrupt Rating: 10 kA at 240 V
• Voltage Rating: 240 V
• Terminal Connection: Bolt-On
• Phase: 3
• Trip Type: Instantaneous/Long Time/Thermal Magnetic
• Standards: UL 489 Listed
