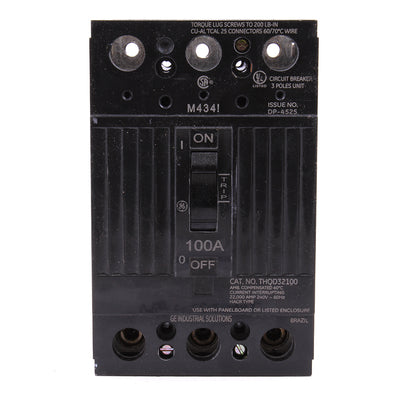

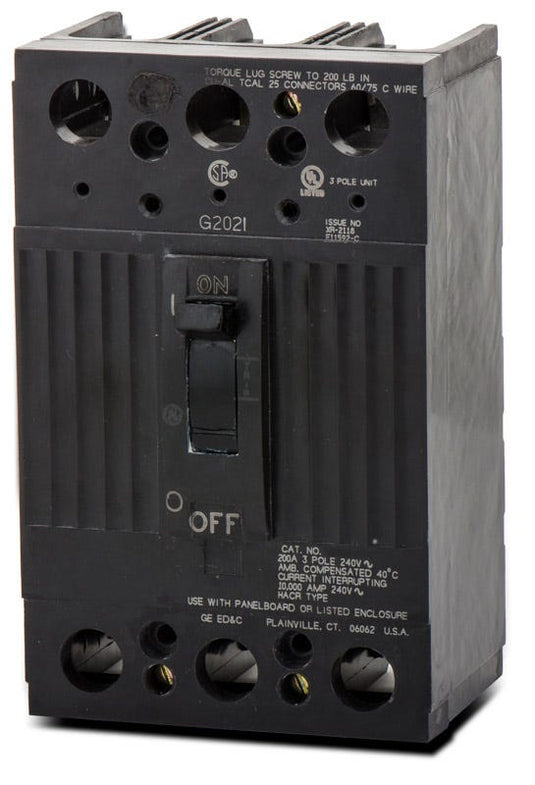

Abb TQD32100 100A 3 Pole Molded Case Circuit Breaker

Product Description

The ABB TQD32100 is a 3-pole, 100A molded case circuit breaker designed for three-phase systems. It features a fixed thermal-magnetic trip unit for long-time and instantaneous (LI) protection. This bolt-on breaker mounts into GE A-Series and Spectra Series panelboards. It has a 10kAIC capacity at 240VAC, includes load-side lugs, supports reverse feed, and is HACR rated.

• 3-pole, 100A molded case circuit breaker
• Fixed thermal-magnetic trip unit for LI protection
• Mounts into GE A-Series and Spectra Series panelboards

Product Highlights

The ABB TQD32100 circuit breaker provides reliable circuit protection for various applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TQD32100

Technical Specifications

• Brand: ABB / General Electric
• Series: TQD
• Part Number: TQD32100
• Amperage: 100A
• Voltage: 240VAC
• Poles: 3
• Phase: 3
• AIC Rating: 10kA @ 240VAC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: GE A-Series Panelboards, GE Spectra Series Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 4 AWG - 300 kcmil (Cu/Al)
• Max Wire: 300 kcmil
• Min Wire: 4 AWG
• Available Options: Auxiliary Switch, Shunt Trip, Undervoltage Release, Lug Kits
• Accessories: Load Side Lugs (TCAL25)
• Standards: HACR Rated, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: Common Trip, HACR Rated, Reverse Feed, Non-Interchangeable Trip
• Category: Q-Line Miniature Circuit Breakers
• Product Line: Thermal Magnetic
• GO Schedule: EF
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Suitable for Reverse Feed: Yes
• Wire Range (Cu/Al): (2) 1-300
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
