Abb TQD22100 TQD 2 Pole 240V 10K IC 100AMP

Product Description

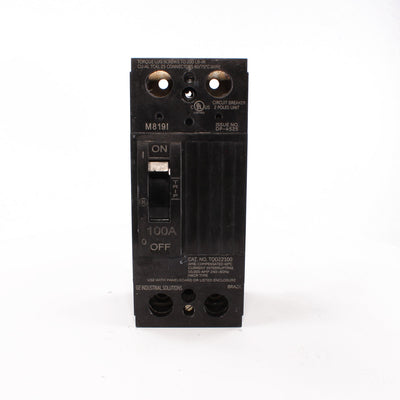

The ABB TQD22100 is a TQD 2 pole, 100A, thermal magnetic molded case circuit breaker with Cu/Al line and load lugs and a 10kAIC interrupting rating. It is suitable for reverse feed and has special HACR markings. The device adheres to UL File #E11592 and GSA Compliance standards.

• Thermal magnetic molded case circuit breakers
• Molded case switches
• Complete with Cu/Al line and load lugs

Product Highlights

The ABB TQD22100 circuit breaker provides reliable circuit protection with a fixed long time and instantaneous trip function.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TQD22100

Technical Specifications

• Category: Thermal Magnetic
• Product Line: Thermal Magnetic
• Trip Style: Non-Interchangeable
• Poles: 2
• Amperage: 100 A
• System Voltage: 240 Vac
• Frame Type: Q-Line
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Trip Function: LI
• Continuous Current Rated: Standard
• Suitable for Reverse Feed: Yes
• Lugs: TCAL25
• Long Time: Fixed
• Instantaneous: Fixed
• Current Metering: No
• Protective Relays: No
• Special Markings: HACR
• Wire Range (Cu/Al): (2) 1-300
• GSA Compliance: Yes
• UL File #: E11592
