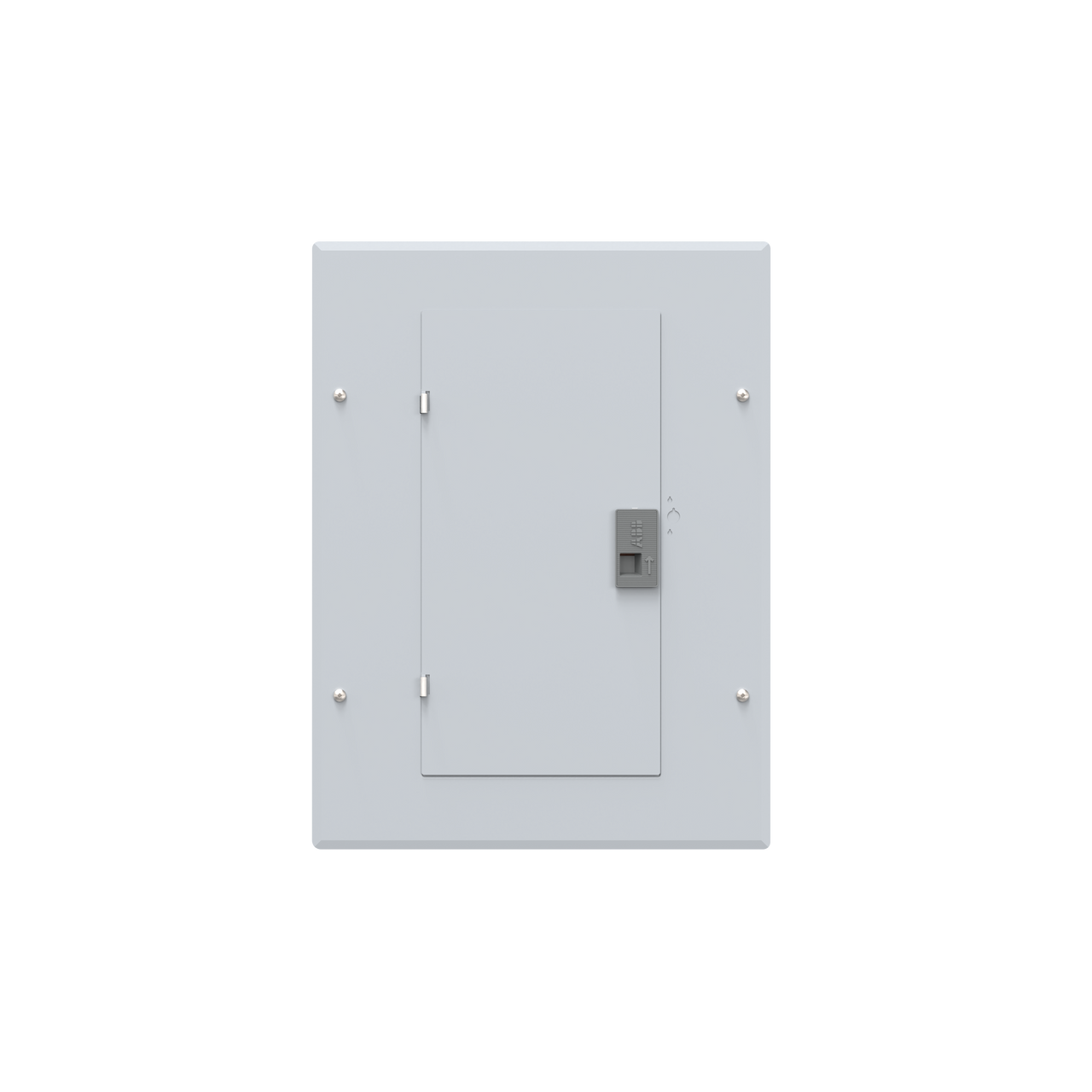

Abb TPLQ412RT ReliaHome T-Series Main Lug Load Center 125 A

Product Description

The ABB TPLQ412RT ReliaHome T-Series main lug load center can be used as a home's main panel or sub panel depending upon your preferences. All ABB load centers are rated up to 60 degree/75 degree centigrade and is suitable for use with service entrance equipment when installed in accordance with electrical code. The TPLQ412RT features space for 4, 1" breakers and a 125 A bus ampere rating.

• Can be used as a home's main panel or sub panel
• Rated up to 60 degree/75 degree centigrade
• Suitable for use with service entrance equipment

Product Highlights

This load center features space for 4, 1" breakers, a 125 A bus ampere rating, a factory included ground bar, and a plastic enclosure.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TPLQ412RT

Technical Specifications

• Category: Load Centers
• GO Schedule: RA
• Grouping: Single Phase - USA
• Number of Branch Circuit <250A: 4
• 1" Space: 4
• 1/2" Space: 0
• Amperage: 125 A
• Circuit Breaker Style: Pigtail (non-PON)
• Device type: Main Lug
• Door: Yes
• Enclosure: Indoor
• Enclosure Type: Indoor, Combination
• Factory Installed Ground Kit: Yes
• Feed: Either
• Input/Output Voltage: 120/240V ac
• Interrupting Capacity Rating: 22 kA
• Load Center Type: T-Series (non-PON)
• NEMA Rating: NEMA 1
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
• Amperage Rating: 125A
• Connection Type: Main Lug
• Current Rating: 125 A
• Interrupt Rating: 22 kA
• Material: Plastic
• Mounting Type: Flush
• Number Of Feeders: Either
• Series: ReliaHome T-Series
• Size: Space for 4, 1" breakers
• Standard: UL
• Voltage Rating: 120/240 V ac
• Wiring Configuration: 3-Wire
