Abb TMQ1212RCU 125A 12crt 1p3w 120/240V 22k ic 3r

Product Description

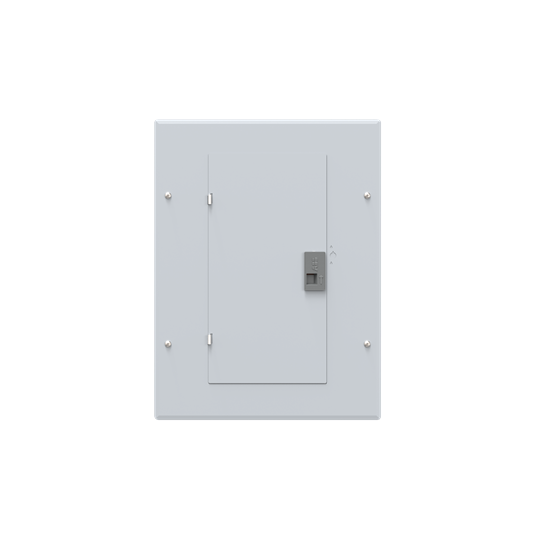

The ABB TMQ1212RCU ReliaHome T-Series main breaker load centers come with a main breaker installed for a convenient and swift installation. Main breakers allow users to stop the flow of electricity in the load center, shutting off all power. The TMQ1212RCU features spaces for 12, 1" breakers, a 125 A bus ampere rating, a copper bus, and an outdoor suitable enclosure.

• Main breaker installed for convenient and swift install
• Main breakers allow stopping the flow of electricity in the load center
• Features spaces for 12, 1" breakers

Product Highlights

The TMQ1212RCU load center features spaces for 12 breakers, a 125 A bus ampere rating, a copper bus, and an outdoor suitable enclosure.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TMQ1212RCU

Technical Specifications

• Category: Load Centers
• GO Schedule: RD
• Grouping: Single Phase - USA
• # Branch Circuit <250A: 12
• 1" Space: 12
• 1/2" Space: 0
• Amperage: 125 A
• Circuit Breaker Style: Pigtail (non-PON)
• Device type: Main Breaker
• Door: No
• Enclosure: Outdoor
• Enclosure Type: Outdoor, Surface Mount
• Factory Installed Ground Kit: No
• Feed: Top
• Input/Output Voltage: 120/240V ac
• Interrupting Capacity Rating: 22
• Load Center Type: T-Series (non-PON)
• Meter Socket Options: 200 Amp Main Breaker Installed: No
• Meter Socket Options: High Amp Mode: None
• NEMA Rating: NEMA 3R
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
