Abb TM3220CCU2K Load Center with Main Breaker 200 Amp 32 Circuit

Product Description

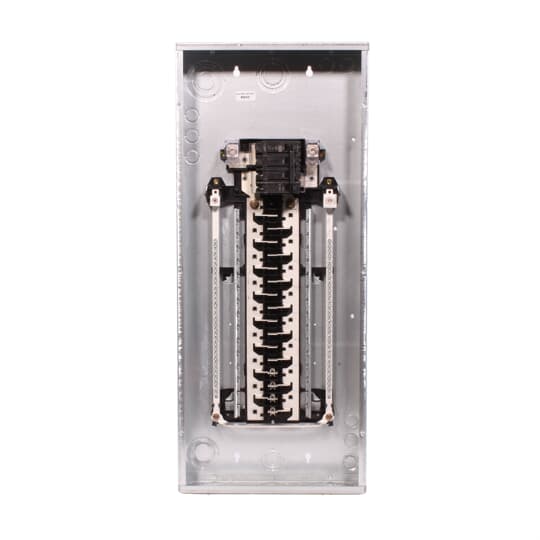

The ABB TM3220CCU2K is a 200 Amp 32 Circuit Load Center with a main breaker. It features a galvanized enclosure for rust protection and extended neutrals for easy wiring. This load center includes 10 - 20A single pole circuit breakers, 1 - 30A double pole circuit breaker and 1 - 50A double pole circuit breaker.

• 200 Amp, 32 spaces, 40 circuits max
• Copper bus
• Galvanized enclosure for rust protection

Product Highlights

This PowerMark Gold Load Center is for indoor use and includes an individually packaged door.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TM3220CCU2K

Technical Specifications

• Amperage: 200 Amp
• Number of Spaces: 32
• Maximum Number of Circuits: 40
• Main Breaker: 200 amp main breaker included (22kAIC main breaker)
• Included Breakers: 10 - 20A single pole circuit breakers included THQL2130, 1 - 30A double pole circuit breaker THQL2130, 1 - 50A double pole circuit breaker THQL2150
• Bus Material: Copper bus
• Enclosure: Galvanized enclosure for rust protection
• Features: Individually packaged door included, Extended neutrals for easy wiring
• Series: PowerMark Gold Load Center
• Approval: UL
• Neutral Type: Split
• Feed Location: Top/Bottom
• Current Rating: 200 Amp
• Enclosure Type: NEMA 1, Indoor
• Voltage Rating: 120/240 Volt AC
• Breaker Mounting: Plug-In
• Interrupting Rating: 22 Kiloamp
• Type: Main Breaker
• Cover Type: Flush/Surface
• Main Wire Size: 1 AWG to 250 KCMIL (Copper), 2/0 AWG to 250 KCMIL (Aluminum)
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Spaces: (32) 1-Pole 1 InchTHQL/(16) 2-Pole 1 Inch THQL/(16) 1-Pole 1/2 Inch THQP/(6) 2-Pole 1/2 Inch THQP
• Enclosure Size Designation: 12
