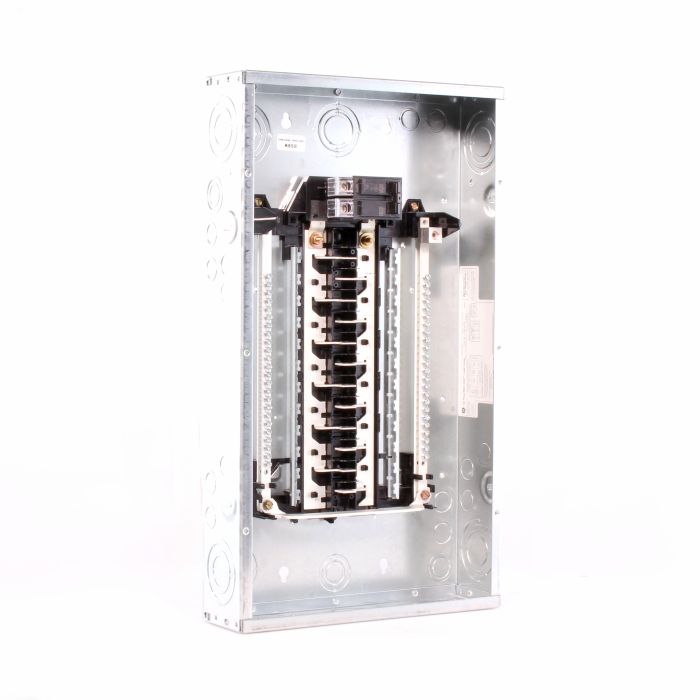

Abb TM2410CCU Load Center Main Breaker 120/240VAC 100A

Product Description

The ABB TM2410CCU is a PowerMark Gold main breaker load center operating at 120/240 VAC and 100 A with a 22 kA interrupt rating. This 1-phase combination standard load center is part of the TM Series and features 24 circuits and plug-in breaker mounting. Suitable for use as service entrance equipment when installed per the National Electrical Code.

• Combination Standard Main Breaker Load Center
• Suitable for use as service entrance equipment when installed in accordance with the national electrical Code®
• 60 to 70 deg C conductor rating

Product Highlights

The ABB TM2410CCU load centers offer faster and easier installation, increased application flexibility, and reduced inventory requirements.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TM2410CCU

Technical Specifications

• Voltage: 120/240 VAC
• Amperage: 100 A
• Interrupt Rating: 22 kA
• Phase: 1-Phase
• Series: TM Series
• Manufacturer: ABB Electrification
• Amperage Rating: 100 A
• Voltage Rating: 120/240 VAC
• Number of Circuits: 24
• Breaker Mounting: Plug-In
• Wiring Configuration: 3-Wire
• Wire Size: 1 to 2/0 AWG Cu/Al
• Enclosure Type: NEMA 1, Indoor
• Mounting: Flush, Surface
• Amps: 100
• IP/NEMA Rating: 1
• Volts AC: 120/240
• Circuits: 24
• Interrupt Rating AC: 22 kA
• Current Rating: 100 Ampere
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Circuits: 24
• Maximum Number of Spaces: (24) 1-Pole 1 Inch/(12) 2-Pole 1 Inch
• Main Breaker Type: THQL
• Interrupting Rating: 22 Kiloampere
• Neutral Type: Split
• Bus Material: Copper
• Feed Location: Top/Bottom
• Main Wire Size: 1 to 2/0 AWG (Copper/Aluminum)
• Cover Type: Flush/Surface
• Enclosure Size Designation: 7
• Approval: UL
