Product Description

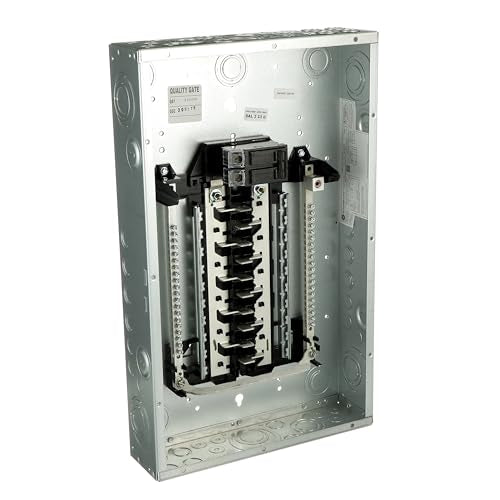

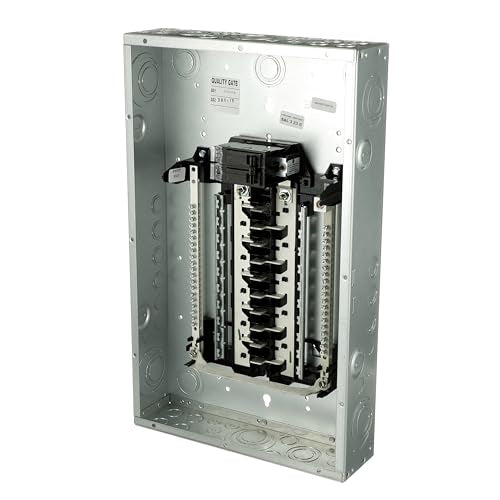

The ABB TM2010CCU is a high-performance 100A main breaker load center. It features a durable NEMA 1 enclosure suitable for indoor use and plug-in breaker mounting for ease of installation. This load center provides spaces for 20, 1" breakers and has a high-conductivity copper bus bar.
- High-performance 100 amp main breaker load center
- Durable NEMA 1 enclosure for indoor use
- Plug-in breaker mounting for ease of use
Product Highlights
This ABB load center ensures superior safety and reliability for residential electrical systems. It offers a convenient and swift install with a main breaker already installed.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TM2010CCU
Technical Specifications
-
Voltage: 120/240 V AC
-
Amperage: 100 A
-
Interrupt Rating: 22 kA
-
Breaker Mounting: Plug-in
-
Enclosure: NEMA 1
-
Mounting Type: Flush/Surface
-
Bus Bar Material: High-conductivity copper
-
1" Space: 20
-
Circuit Breaker Style: Plug-In
-
Device type: Main Breaker
-
Door: Yes
-
Enclosure Type: Indoor, Combination
-
Factory Installed Ground Kit: No
-
Feed: Either
-
Input/Output Voltage: 120/240V ac
-
Interrupting Capacity Rating: 22
-
Load Center Type: Standard
-
NEMA Rating: NEMA 1
-
Phase: 1 Phase
-
Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
-
Wires: 3 Wire
-
UL/CUL Listing: UL
-
Approval: UL
-
Neutral Type: Split
-
Feed Location: Top/Bottom
-
Current Rating: 100 Amp
-
Type: Main Breaker
-
Cover Type: Flush/Surface
-
Main Wire Size: 14 to 1/0 AWG (Copper/Aluminum)
-
Circuit Configuration: 1-Phase 3-Wire
-
Maximum Number of Spaces: (20) 1-Pole 1 Inch/(10) 2-Pole 1 Inch
-
Maximum Number of Circuits: 20
-
Amperage Rating: 100 A
-
Bus Material: Copper
-
Number of Spaces: 20
-
Voltage Rating: 120/240 VAC
