Abb TM18410C Load Center 100A 18-circuit 3P4W

Product Description

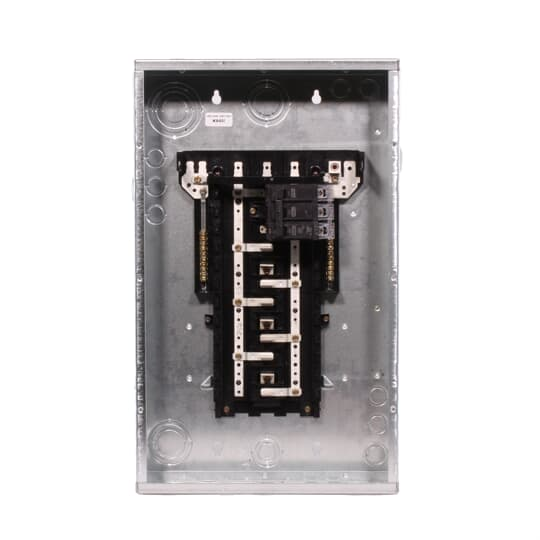

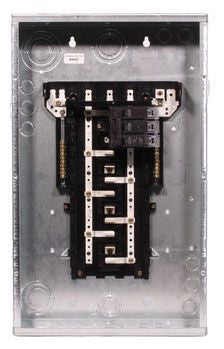

The ABB TM18410C is a main breaker load center designed for electrical distribution in residential and light commercial applications. It arrives with the main breaker factory-installed, simplifying the installation process. The panel features an 18-circuit capacity accommodating 1-inch breakers, a 100-amp bus rating, and a 3-phase, 4-wire configuration. The enclosure is a combination flush-mount style, suitable for surface or flush installation in standard stud-wall construction. This load center is installed by licensed electricians and is sized for panels where a single disconnect shutoff is required at the enclosure itself.

The TM18410C is suited for residential service panels and light commercial distribution boards where a 3-phase, 4-wire supply is present. The combination flush enclosure allows flexible mounting options, making it appropriate for new construction or retrofit work. With 18 spaces for 1-inch branch circuit breakers, it accommodates typical residential or small commercial circuit loads. The factory-installed main breaker provides a single point of disconnect for the entire panel, meeting common inspection and code requirements for enclosed load centers.

Key Features

• Factory-installed main breaker for single-point disconnect at the enclosure
• 18 spaces for 1-inch branch circuit breakers
• 100-amp bus ampere rating
• 3-phase, 4-wire (3P4W) configuration
• Combination flush enclosure supports surface or flush mounting

Compatibility

Designed as an OEM-style main breaker load center for 3-phase, 4-wire electrical distribution systems requiring a 100-amp, 18-circuit panel with a combination flush enclosure.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Verify that utility service is fully de-energized and the meter is pulled before opening the enclosure or making any connections. Confirm that the supply conductors are rated for the 100-amp service before terminating at the bus. Flush mounting requires accurate rough-in framing to the enclosure dimensions prior to drywall installation.

Technical Specifications

• Bus Ampere Rating: 100A
• Number of Circuits: 18
• Breaker Space Size: 1 inch
• Phase Configuration: 3-Phase, 4-Wire (3P4W)
• Enclosure Type: Combination Flush
• UPC: 783164189971

Standard Information

• Brand: ABB
• Manufacturer Part Number: TM18410C
