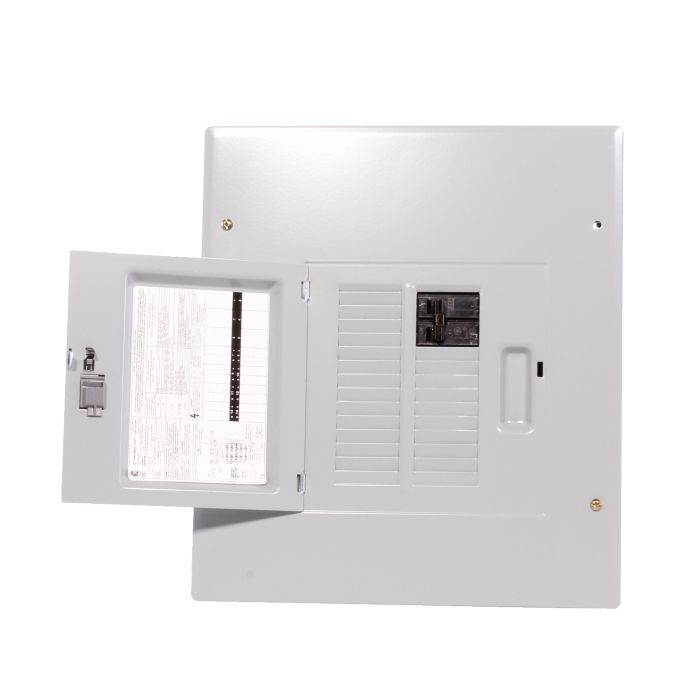

Abb TM1210CCU 100A 12CT 1P3W 120/240V 22K IC COMB

Product Description

The ABB TM1210CCU is a PowerMark Gold main breaker load center that arrives with a main breaker installed for a convenient and swift install. Main breakers allow users to stop the flow of electricity in the load center, shutting off all power. It features spaces for 12, 1" breakers, a 100 A bus ampere rating and a copper bus.

• Main breaker installed for convenient and swift install
• Features spaces for 12, 1" breakers
• 100 A bus ampere rating

Product Highlights

This load center is ideal for residential applications requiring a reliable and easy-to-install solution for power distribution and circuit protection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TM1210CCU

Technical Specifications

• Category: Load Centers
• GO Schedule: RD
• Grouping: Single Phase - USA
• 1" Space: 12
• 1/2" Space: 24
• Amperage: 100 A
• Circuit Breaker Style: Plug-In
• Device type: Main Breaker
• Door: Yes
• Enclosure: Indoor
• Enclosure Type: NEMA 1
• Factory Installed Ground Kit: Yes
• Feed: Either
• Input/Output Voltage: 120/240V ac
• Interrupting Capacity Rating: 22
• Load Center Type: Standard
• NEMA Rating: NEMA 1
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
• Manufacturer: ABB Electrification
• Number of Poles: 1
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 22 kA
• Type: Main Breaker
• Number of Circuits: 12
• Breaker Type: THQL/THQP
• Wiring Configuration: 3-Wire
• Wire Size: 4 to 1/0 AWG
• Mounting Type: Flush
• UNSPSC: 39121101
• Approval: UL
• Bus Material: Tin Plated Copper
• Neutral Type: Split
• Feed Location: Top/Bottom
• Current Rating: 100 Amp
• Cover Type: Flush/Surface
• Main Wire Size: 4 to 1/0 AWG (Copper/Aluminum)
• Main Breaker Type: THQL/THQP
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Spaces: (12) 1-Pole 1 InchTHQL/(6) 2-Pole 1 Inch THQL/(24) 1-Pole 1/2 Inch THQP/(10) 2-Pole 1/2 Inch THQP
• Enclosure Size Designation: 18
• Maximum Number of Circuits: 12
• Mounting: Flush, Surface
• Amps: 100
• Volts AC: 120/240
• Interrupt Rating AC: 22 kA
