Abb TLQ412RT1 125A 4crt 1p3w 120/240v 3r w/ground

Product Description

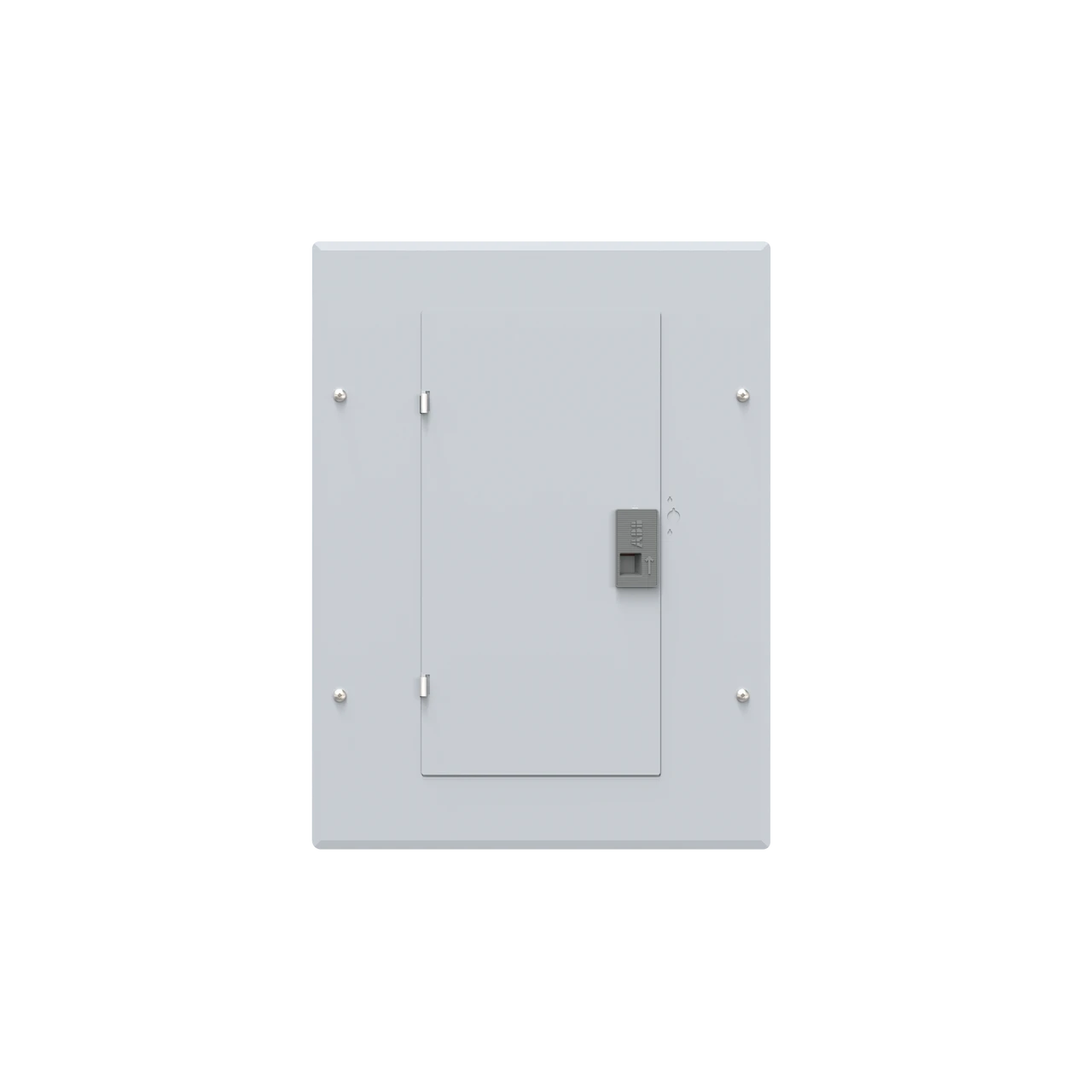

The ABB TLQ412RT1 ReliaHome T-Series main lug load centers can be used as a home's main panel or sub panel. All ABB load centers are rated up to 60 degree/75 degree centigrade and is suitable for use with service entrance equipment. The TLQ412RT1 features space for 4, 1" breakers, a 125 A bus ampere rating, a factory included ground bar, and an outdoor suitable enclosure.

• Space for 4, 1" breakers
• 125 A bus ampere rating
• Factory included ground bar
• Outdoor suitable enclosure

Product Highlights

This load center is ideal for residential applications, providing reliable power distribution and circuit protection in a compact, outdoor-rated enclosure.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLQ412RT1

Technical Specifications

• Category: Load Centers
• GO Schedule: RA
• Grouping: Single Phase - USA
• # Branch Circuit <250A: 4
• 1" Space: 4
• 1/2" Space: 0
• Amperage: 125 A
• Circuit Breaker Style: Pigtail (non-PON)
• Device type: Main Lug
• Door: Yes
• Enclosure: Outdoor
• Enclosure Type: Outdoor, Surface Mount
• Factory Installed Ground Kit: Yes
• Feed: Either
• Input/Output Voltage: 120/240V ac
• Interrupting Capacity Rating: 22
• Load Center Type: T-Series (non-PON)
• NEMA Rating: NEMA 3R
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
