Abb TLMQ612FCUD 6circ Mnlug 125a Indoor Flush W/Dr

Product Description

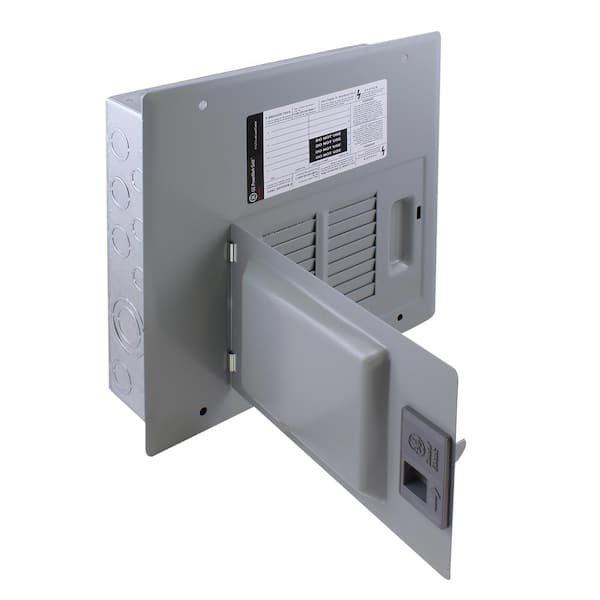

The ABB TLMQ612FCUD ReliaHome T-Series convertible load center arrives as main lug, but can have a main breaker installed. It is rated up to 60 degree/75 degree centigrade and suitable for use with service entrance equipment. Features space for 6, 1" breakers, a 125 A bus ampere rating and a flush enclosure.

• Main lugs are factory installed, convertible to main breaker
• Compatible with THQLT (tandem) and THQLQ(quad) breakers(not THQP)
• Galvanized box for increased durability and reliability

Product Highlights

The ABB TLMQ612FCUD load center delivers flexibility, safety, and reliability. Designed as a main lug panel, it can be upgraded to a main breaker configuration. With a 125A bus ampere rating and copper bus, it ensures conductivity and thermal performance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLMQ612FCUD
• Country of Origin: United States

Technical Specifications

• Category: Load Centers
• GO Schedule: RD
• Grouping: Single Phase - USA
• Number of Branch Circuit <250A: 6
• 1" Space: 6
• 1/2" Space: 0
• Amperage: 125 A
• Circuit Breaker Style: Pigtail (non-PON)
• Device type: Main Lug
• Door: Yes
• Enclosure: Indoor
• Enclosure Type: Indoor, Flush Mount
• Factory Installed Ground Kit: No
• Feed: Either
• Input/Output Voltage: 120/240V ac
• Interrupting Capacity Rating: 22
• Load Center Type: T-Series (non-PON)
• NEMA Rating: NEMA 1
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
• Number of Items in Set: Does not apply
• Maximum Amperage (A): 125 A
• Power Source: Does not apply
• Breaker Box Type: Subpanel
• Indoor/Outdoor: Indoor
• Electrical Product Type: Main Lug/ Main Lug Kit
• MPN: TLMQ612FCUD
• Product Depth (in.): 3.36 in
• Item Height: 11.11 in
• Connection Type: Non-Neutral
• Item Width: 11.36 in
• Product Width (in.): 11.36 in
• Voltage (V): 240 V
• Mounting Type: Flush
• Number of Spaces: 6
• Series Type: Not Specified
• Type: Breaker Boxes
• Certifications and Listings: UL Listed
• Model: TLMQ612FCUD
• Product Height (in.): 11.11 in
• Number of Circuits: 12
• Phase Type: 1 Phase
• Amperage Rating: 125 A
• Interrupt Rating: 22
• Load Regulation: 120/240V ac
• Number Of Feeders: Either
• Standard: UL
• Wiring Configuration: 3 Wire
• Voltage: 240 V
