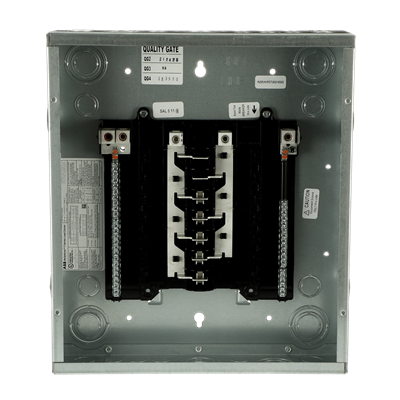

ABB TLMQ1412CCU Load Center Convertible 125A 14/28 Cu N1 UL

Product Description

The ABB TLMQ1412CCU Load Center is a convertible device that functions as a main lug, with the option to install a main breaker. This load center supports temperatures up to sixty degrees Celsius and is designed for service entrance applications. It can hold up to twelve one-inch breakers and features a copper bus with a total bus ampere rating of 125 Amps.

• Convertible load center acts as main lug or supports main breaker installation.
• Operates at temperatures up to sixty degrees Celsius, compliant with service entrance standards.
• Accommodates twelve one-inch breakers.

Product Highlights

The ABB TLMQ1412CCU is ideal for residential or light commercial applications, ensuring safety and reliability in electrical installations.

Product Information

Standard Information

• Category: Load Centers
• Grouping: Single Phase - USA

Technical Specifications

• Branch Circuit Capacity<250A: 12
• 1" Space: 12
• 1/2" Space: 0
• Amperage: 125 A
• Device Type: Main Lug
• Door: Yes
• Enclosure: Indoor
• Enclosure Type: Indoor, Combination
• Factory Installed Ground Kit: Yes
• Feed: Either
• Input/Output Voltage: 120/240V AC
• Interrupting Capacity Rating: 22 kA
• Load Center Type: T-Series (non-PON)
• NEMA Rating: NEMA 1
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V AC
• Wires: 3 Wire
• UL/CUL Listing: UL
• Depth: 3.7 in
• Height: 19.0 in
• Width: 14.0 in
