Abb TLM612FCUD Load Center 125A 6 Circuit Flush Mount

Product Description

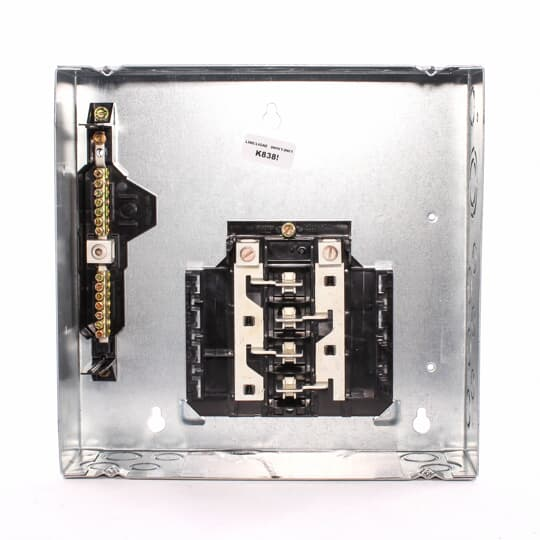

The ABB TLM612FCUD is an indoor flush-mount load center rated at 125 amps with a 6-circuit capacity. It accepts a main lug configuration, meaning line-side conductors connect directly to the lugs rather than through an integrated main breaker. The included door gives the enclosure a finished appearance suitable for interior installations. Licensed electricians install this unit in residential and light commercial applications where a sub-panel or secondary distribution point is required.

This load center is suited for indoor installations where a compact, flush-mount sub-panel is needed. The main lug configuration allows feed from an upstream breaker in a main panel, making it a practical choice for garage sub-panels, workshop circuits, additions, or any application where a dedicated branch circuit distribution point is required inside a conditioned or sheltered space.

Key Features

• 125-amp main lug rating supports standard residential and light commercial sub-panel loads
• 6-circuit capacity for compact branch circuit distribution
• Flush-mount design integrates cleanly into finished wall surfaces
• Included door provides enclosure protection and a finished appearance for indoor use
• Main lug configuration allows flexible feed from an upstream overcurrent device

Compatibility

Designed as an OEM-style load center for use as an indoor residential or light commercial sub-panel distribution enclosure.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream feed source completely before making any connections at the lugs. Flush-mount installations require proper rough-in depth and secure fastening to wall framing. Verify conductor sizing for the 125-amp feed is appropriate per NEC ampacity tables before terminating at the main lugs.

Technical Specifications

• Amperage Rating: 125 amps
• Number of Circuits: 6
• Configuration: Main lug
• Mount Type: Flush mount
• Enclosure Type: Indoor with door
• UPC: 783164267990

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLM612FCUD
