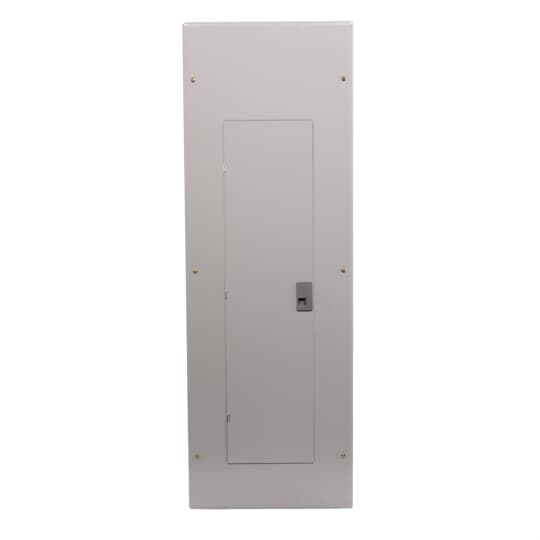

Abb TLM4220CCU 200A 42 Circuit Load Center 1 Phase

Product Description

The ABB TLM4220CCU is a field convertible, combination-type residential load center rated for 200 amps at single phase. Designed for main breaker or main lug configuration in the field, this load center supports up to 42 circuit spaces and carries a 22kA interrupting capacity (IC) rating. Electricians install this unit in residential and light commercial applications where panel flexibility during rough-in or service upgrades is a priority. The field-convertible design reduces the need to stock separate main breaker and main lug panels, making it a practical choice for electrical contractors managing diverse job requirements.

This load center is suited for single-phase residential installations, including new construction and service upgrades. The 42-circuit capacity accommodates full residential circuit loads, and the 22kA IC rating meets standard residential service requirements. It is installed by licensed electricians in accordance with NEC guidelines for panelboard installation and service equipment.

Key Features

• Field convertible design: configurable as main breaker or main lug in the field
• 200 amp service rating for single-phase residential and light commercial use
• 42 circuit spaces for high-capacity residential electrical distribution
• 22kA interrupting capacity (IC) rating meets standard residential fault current requirements
• Combination-type enclosure supports flexible installation configurations

Compatibility

Designed as an OEM-style replacement or new-installation load center for single-phase residential and light commercial electrical distribution systems requiring a 200 amp, 42-circuit panelboard.

Installation Notes

Installation must be performed by a licensed electrician in compliance with applicable NEC requirements for service equipment and panelboards. Disconnect and lock out utility power before beginning any work on the load center. Verify that the field conversion to main breaker or main lug configuration is completed before energizing. Inspect all bus connections and enclosure grounding per local authority having jurisdiction (AHJ) requirements before closing the panel.

Technical Specifications

• Amperage Rating: 200 amps
• Number of Circuits: 42
• Phase: 1 phase
• Interrupting Capacity: 22kA IC
• Configuration: Field convertible (main breaker or main lug)
• UPC: 783164328424

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLM4220CCU
