Abb TLM4020CCU Load Center, Convertible, 200A, 1PH, 120/240VAC, 65kAIC, 40 Space

Product Description

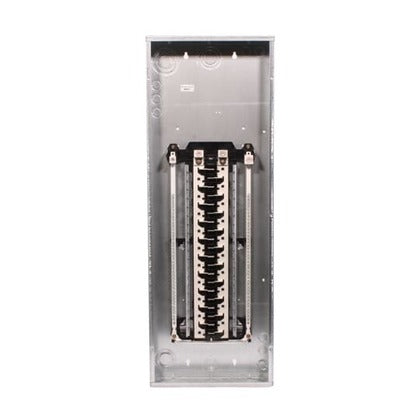

The ABB TLM4020CCU load center is a convertible main lug type, rated at 200 Amp, 1-Phase, 120/240 Volt AC, with a 65 kAIC, and 40 spaces. PowerMark Gold load centers are designed to make installation faster and easier, increasing application flexibility and reducing inventory requirements.

• One-Piece Interior Removes and Reinstalls Easily
• Full-Length Neutrals are Easier to Wire, Reducing Installation Time and Cost
• Minimum 100 Percent Neutral Terminations

Product Highlights

This ABB load center features a sturdy copper bus and galvanized box for increased durability and reliability. Suitable for residential applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLM4020CCU

Technical Specifications

• Amps: 200
• Mounting: Flush, Surface
• IP/NEMA Rating: NEMA 1
• Phase: 1
• Volts AC: 120/240
• Type: Main Lug
• Circuits: 40
• Interrupt Rating AC: 65 kA
• Approval: UL
• Bus Material: Tin Plated Copper
• Neutral Type: Split
• Feed Location: Top/Bottom
• Current Rating: 200 Amp
• Enclosure Type: NEMA 1, Indoor
• Voltage Rating: 120/240 Volt AC
• Breaker Mounting: Plug-In
• Size: 14 Inch Width x 3-3/4 Inch Depth x 39-3/16 Inch Height
• Cover Type: Flush/Surface
• Main Wire Size: 6 AWG to 250 KCMIL (Copper/Aluminum)
• Main Breaker Type: THQL/THQM
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Spaces: (40) 1-Pole 1 InchTHQL/(20) 2-Pole 1 Inch THQL
• Maximum Number of Circuits: 40
