Abb TLM2412CCU Fld Cnvrtb 125A 24Crk 22K Ic Comb

Product Description

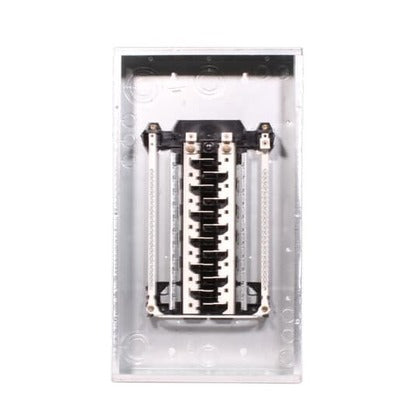

The ABB TLM2412CCU PowerMark Gold convertible load center arrives as a main lug, but can have a main breaker installed. It is rated up to 60 degree/75 degree centigrade and suitable for use with service entrance equipment. It features space for 24, 1" breakers, a 125 A bus ampere rating, and a combination/flush enclosure.

• One-Piece Interior Removes and Reinstalls Easily
• Full-Length Neutrals are Easier to Wire, Reducing Installation Time and Cost
• Minimum 100 Percent Neutral Terminations

Product Highlights

This load center increases application flexibility and reduces inventory requirements. Delivers advances in design, function and quality.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLM2412CCU

Technical Specifications

• Category: Load Centers
• GO Schedule: RD
• Grouping: Single Phase - USA
• # Branch Circuit <250A: 24
• 1" Space: 24
• 1/2" Space: 0
• Amperage: 125 A
• Circuit Breaker Style: Plug-In
• Device type: Main Lug
• Door: Yes
• Enclosure: Indoor
• Enclosure Type: NEMA 1, Indoor
• Factory Installed Ground Kit: No
• Feed: Either
• Input/Output Voltage: 120/240V ac
• Load Center Type: Standard
• NEMA Rating: NEMA 1
• Phase: 1 Phase
• Service & Voltage: 1 Phase, 3 Wire, 120/240V ac
• Wires: 3 Wire
• UL/CUL Listing: UL
• Depth: 3.7 in
• Height: 24.7 in
• Width: 14.0 in
• UNSPSC: 39121101
• Approval: UL
• Bus Material: Tin Plated Copper
• Neutral Type: Split
• Feed Location: Top/Bottom
• Current Rating: 125 Amp
• Voltage Rating: 120/240 Volt AC
• Breaker Mounting: Plug-In
• Interrupting Rating: 22 Kiloamp
• Type: Convertible Main
• Cover Type: Flush/Surface
• Main Wire Size: 6 to 2/0 AWG (Copper/Aluminum)
• Main Breaker Type: THQL/THHQL/TXQL/TQMH
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Spaces: (24) 1-Pole 1 InchTHQL/(12) 2-Pole 1 Inch THQL
• Enclosure Size Designation: 7
• Maximum Number of Circuits: 24
• Mounting: Flush, Surface
• Amps: 125
• IP/NEMA Rating: NEMA 1
• Volts AC: 120/240
• Number of Circuits: 24
