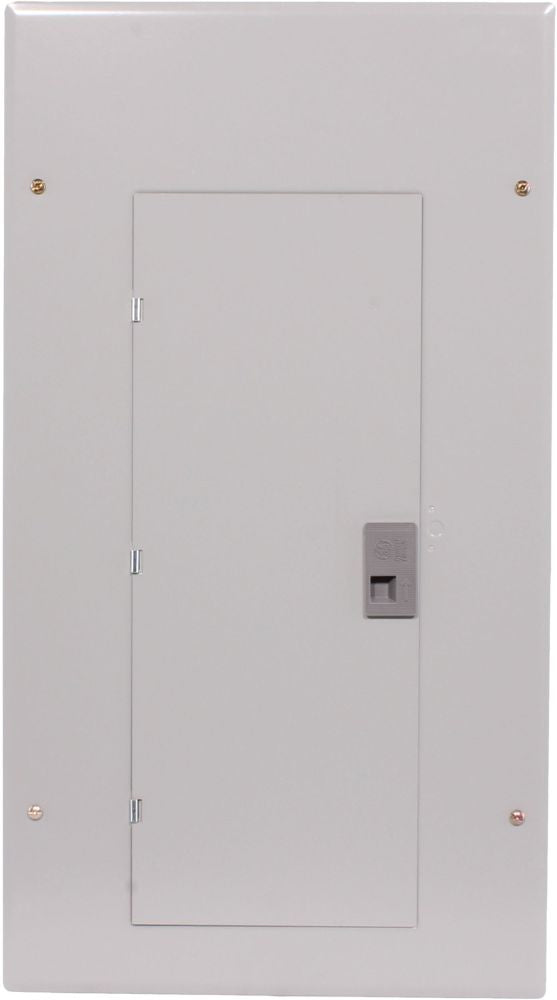

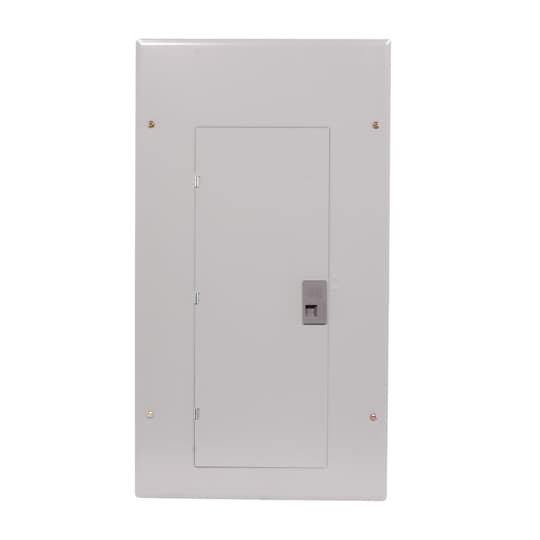

Abb TLM2020CCU Convertible Load Center 200A 20 Circuit

Product Description

The ABB TLM2020CCU is a 200-amp convertible load center designed for residential and light commercial electrical distribution. Rated at 200 amps with 20 circuit positions, this panel accepts standard single-pole and double-pole breakers and supports both main breaker and main lug configurations, giving installers flexibility at the time of installation. Licensed electricians install this unit as the primary service entrance or as a sub-panel in new construction and renovation projects. The convertible design reduces the need to stock separate main breaker and main lug panels on the job site.

The TLM2020CCU is suited for residential service entrance applications and light commercial distribution where a 200-amp, 20-circuit capacity meets load requirements. It functions as either a main breaker panel or a main lug panel depending on how it is configured in the field, making it a practical choice for a range of single-family and multifamily wiring scenarios.

Key Features

• 200-amp main rating with 20 circuit positions
• Convertible configuration supports both main breaker and main lug installation
• Accepts standard single-pole and double-pole branch circuit breakers
• Designed for service entrance and sub-panel applications

Compatibility

Designed as an OEM-style replacement and new-installation load center for 200-amp residential and light commercial electrical service applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the service entrance and verify zero voltage with a meter before beginning any wiring work. Torque all lugs and terminals to the values listed on the panel label. Inspect the enclosure for proper grounding and bonding before closing and energizing.

Technical Specifications

• Amperage Rating: 200 amps
• Number of Circuits: 20
• Configuration: Convertible main breaker or main lug
• UPC: 783164112375

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLM2020CCU
