Abb TLM1612CCU Loadcenter Lug Main Convertible 125A

Product Description

The ABB TLM1612CCU Loadcenter is a convertible main lug loadcenter with a 125A amperage. Designed for 120/240 VAC applications, this 1-phase loadcenter features a 22 kA interrupt rating. It is suitable for use as service entrance equipment when installed according to the National Electrical Code.

• Convertible Main Lug Loadcenter
• Industrial Solutions
• One-Piece Interior Removes and Reinstalls Easily

Product Highlights

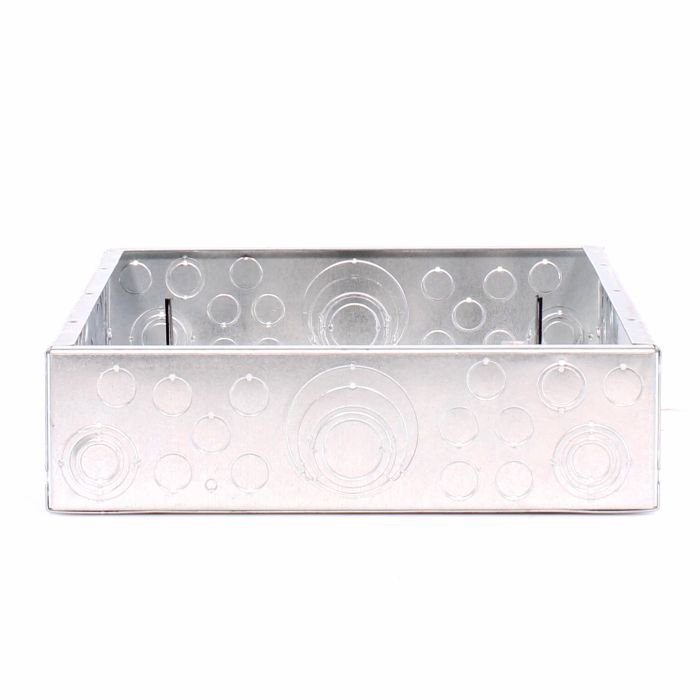

This ABB loadcenter offers easy installation and increased application flexibility. It features a sturdy copper bus and a galvanized box for enhanced durability and reliability.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TLM1612CCU

Technical Specifications

• Voltage: 120/240 VAC
• Amperage: 125 A
• Phase: 1-Phase
• Interrupt Rating: 22 kA
• Mounting: Flush, Surface
• IP/NEMA Rating: NEMA 1
• Circuits: 24
• Approval: UL
• Bus Material: Tin Plated Copper
• Neutral Type: Split
• Feed Location: Top/Bottom
• Current Rating: 125 Amp
• Enclosure Type: NEMA 1, Indoor
• Voltage Rating: 120/240 Volt AC
• Breaker Mounting: Plug-In
• Interrupting Rating: 22 Kiloamp
• Size: 14 Inch Width x 3-3/4 Inch Depth x 19 Inch Height
• Type: Convertible Main
• Cover Type: Flush/Surface
• Main Wire Size: 6 to 2/0 AWG (Copper/Aluminum)
• Main Breaker Type: THQL/THQP/THHQL/TXQL/TQMH
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Spaces: (16) 1-Pole 1 InchTHQL/(8) 2-Pole 1 Inch THQL/(16) 1-Pole 1/2 Inch THQP/(6) 2-Pole 1/2 Inch THQP
• Maximum Number of Circuits: 16
• Manufacturer: ABB Electrification
• Series: TLM
• Breaker Type: THHQL/THQL/THQP/TQMH/TXQL
• Wiring Configuration: 3-Wire
• Number of Spaces: 16
• Wire Size: 6 to 2/0 AWG
• Mounting Type: Flush
• Dimensions: 19 in H x 14 in W x 3-3/4 in D
