Abb TL42422C Mlo 225A 42Crt 3P4W 208Y/120V Combo

Product Description

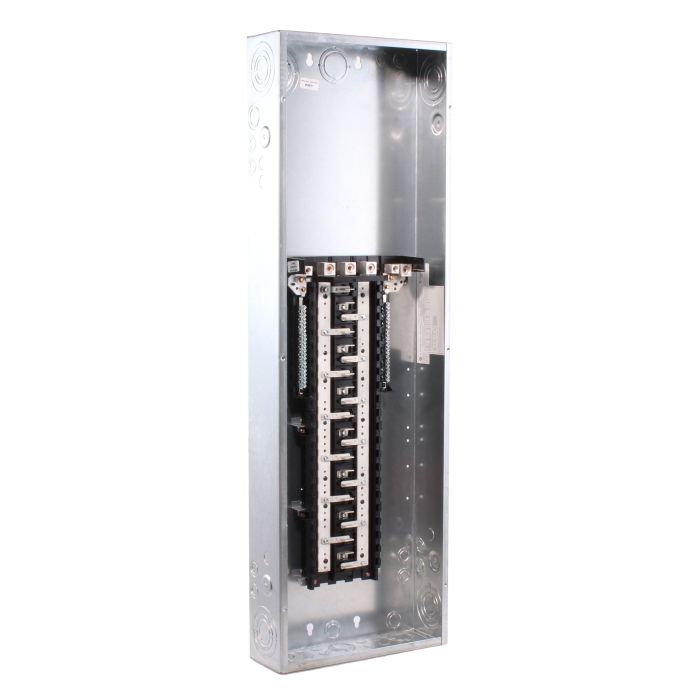

The ABB TL42422C main lug load center can function as a home's main panel or sub panel. Rated up to 60 degree/75 degree centigrade, it is suitable for use with service entrance equipment when installed according to electrical code. It features space for 42, 1" breakers, 3 phases, a 225 A bus ampere rating, and a combination/flush enclosure.

• Space for 42, 1" breakers
• 225 A bus ampere rating
• Suitable for use with service entrance equipment

Product Highlights

The ABB TL42422C main lug load center is ideal for residential or commercial use, offering a 225A bus ampere rating and space for 42, 1" breakers.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TL42422C

Technical Specifications

• # Branch Circuit <250A: 42
• 1" Space: 42
• 1/2" Space: 0
• Amperage: 225 A
• Circuit Breaker Style: Plug-In
• Device type: Main Lug
• Door: Yes
• Enclosure: Indoor
• Enclosure Type: Indoor, Combination
• Factory Installed Ground Kit: No
• Feed: Either
• Input/Output Voltage: 208Y/120V ac
• Interrupting Capacity Rating: 65
• Load Center Type: Standard
• NEMA Rating: NEMA 1
• Phase: 3 Phase
• Service & Voltage: 3 Phase, 4 Wire, 208Y/120V ac
• Wires: 4 Wire
• UL/CUL Listing: UL
• Depth: 4.6 in
• Height: 43.4 in
• Width: 14.0 in
• Manufacturer: ABB Electrification
• Amperage Rating: 225 A
• Voltage Rating: 208Y/120 VAC
• Interrupt Rating: 22 kA
• Type: 3-Phase Standard
• Number of Circuits: 42
• Breaker Type: THQL
• Wiring Configuration: 4-Wire
• Number of Spaces: 42
• Wire Size: 1 AWG to 300 kcmil, 2/0 AWG to 300 kcmil
• Mounting Type: Flush
