Abb TL412R260GF Spa Panel 60A GFCI Breaker

Product Description

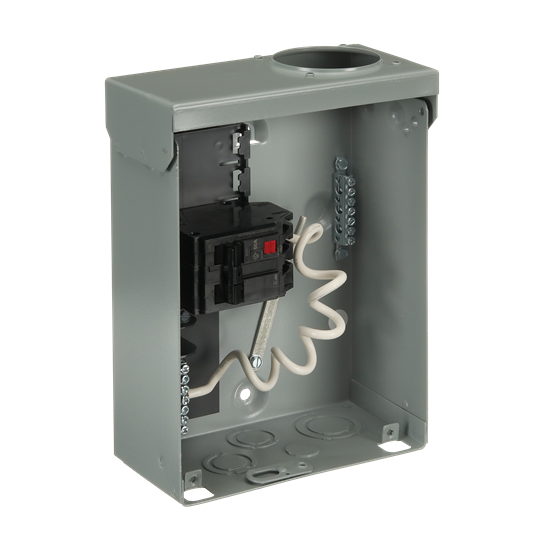

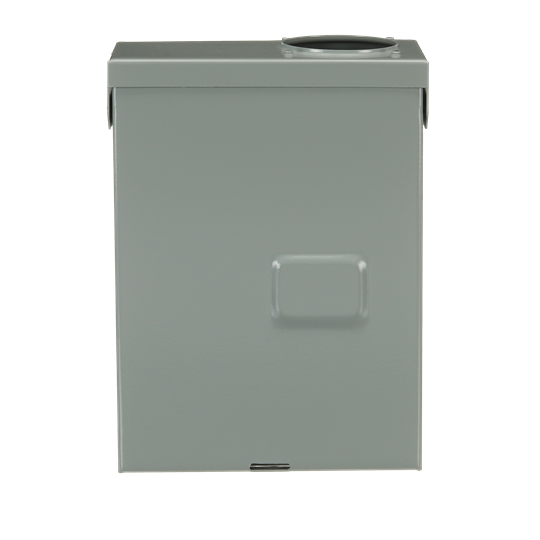

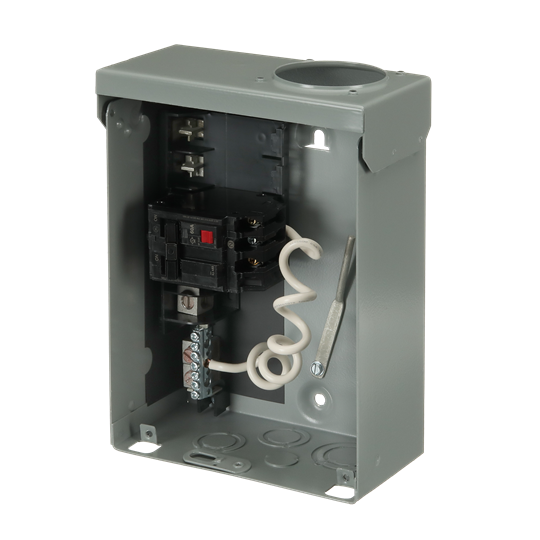

The ABB TL412R260GF spa panel features space for 4, 1" breakers and a 60 A bus ampere rating. It includes a factory-installed 60A GFCI breaker, providing essential protection for spas, hot tubs, and pools. Constructed with a weather-resistant NEMA 3R rated steel enclosure, ensuring reliable performance in outdoor environments.

• 60A 2-pole 240V GFCI Breaker included
• Unit has 2-additional 1in. spaces for extra circuits
• Outdoor suitable enclosure

Product Highlights

Ideal for outdoor spa setups, this 60 Amp GFCI spa panel ensures safe and compliant installations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TL412R260GF
• Country of Origin: UKN

Technical Specifications

• Category: Load Centers
• Grouping: Single Phase - USA
• 1" Space: 4
• Amperage: 125 A
• Circuit Breaker Style: Plug-In
• Device type: Main Lug
• Door: Yes
• Enclosure: Outdoor
• Enclosure Type: NEMA 3R
• Factory Installed Ground Kit: Yes
• Feed: Either
• Load Center Type: Pool and Spa
• NEMA Rating: NEMA 3R
• Phase: 1 Phase
• Wires: 3 Wire
• UL/CUL Listing: UL
• Voltage Rating: 240 V
• Amperage Rating: 60 Amp
• Standard: UL Listed
• Wiring Configuration: 3 Wire
• Number of Phases: 1
• Maximum Current: 60 Amps
• Number Of Circuits: 8
• Phase Type: Single Phase
• Material Type: Alloy Steel, Copper, Plastic
