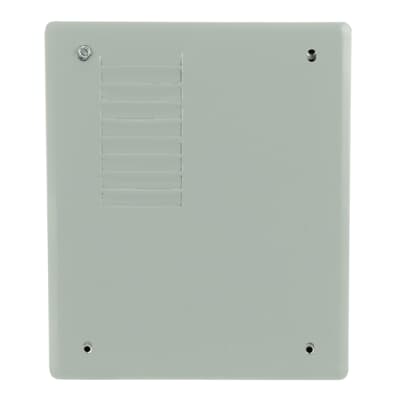

ABB TL412C Mlo 125A 4Crt 1P3W 120/240V Combo

Product Description

The ABB TL412C main lug load center serves as a crucial component for residential electrical systems, acting as either a main panel or sub panel. It is designed for safe installation up to sixty degrees or seventy-five degrees centigrade as per electrical code requirements. The panel supports four one-inch circuit breakers and has a bus ampere rating of one hundred twenty-five amps, allowing for reliable electrical distribution.

• Configurable as main or sub panel
• Supports four one-inch breakers
• Rated for up to one hundred twenty-five amps

Product Highlights

This load center is built for indoor use with a combination and flush enclosure design, providing flexibility in installation.

Product Information

Standard Information

• Category: Load Centers
• Grouping: Single Phase - USA

Technical Specifications

• 1inch Space: 4
• Amperage: 125 A
• Circuit Breaker Style: Plug-In
• Device Type: Main Lug
• Enclosure Type: Combination/Flush
• Input/Output Voltage: 120/240V AC
• Interrupting Capacity Rating: 10kA
• NEMA Rating: NEMA 1
• UL Listing: UL
