Abb TL30420C Mlo Load Center 200A 30-circuit 3ph 4W

Product Description

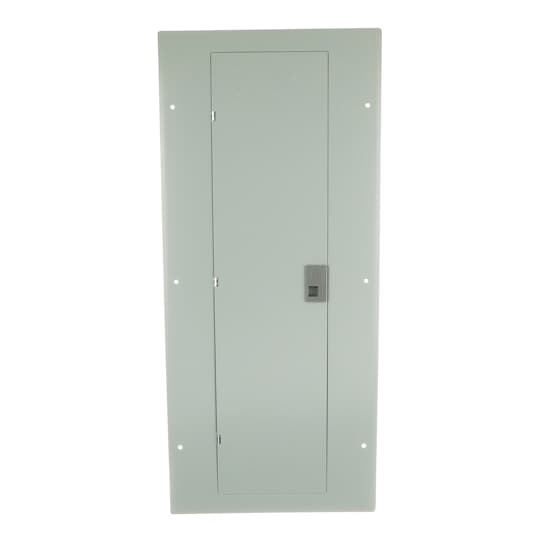

The ABB TL30420C is a main lug only (MLO) load center rated at 200 amps with a 30-circuit, 3-phase, 4-wire configuration for 208Y/120-volt systems. It accepts up to 30 single-inch breakers across 3 phases and is housed in a combination/flush enclosure. The bus is rated at 200 amps and is suitable for use as either a main panel or a sub-panel, depending on the installation layout. All ABB load centers in this series are rated for 60 degrees C and 75 degrees C conductors, keeping the unit compliant with a wide range of wiring configurations encountered in commercial and light industrial work.

The TL30420C is designed for 3-phase, 4-wire 208Y/120-volt distribution systems commonly found in light commercial buildings, multi-tenant residential properties, and larger residential installations requiring 3-phase power. Its MLO design makes it well suited as a sub-panel fed from an upstream main breaker or as a service entrance panel when installed in accordance with applicable electrical codes. Licensed electricians handling new construction, tenant improvements, or panel upgrades are the primary installers of this unit.

Key Features

• 200-amp bus rating supports high-capacity 3-phase distribution
• 30 spaces for 1-inch breakers across 3 phases
• Main lug only design allows use as main panel or sub-panel
• Rated for 60 degrees C and 75 degrees C conductor ratings
• Suitable for use with service entrance equipment per electrical code
• Combination/flush enclosure for flexible mounting applications

Compatibility

Designed as an OEM-style MLO load center for 3-phase, 4-wire 208Y/120-volt distribution applications in residential and light commercial installations.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream service and verify the absence of voltage before making any connections to the bus or lugs. The combination/flush enclosure should be properly secured to the mounting surface before wiring the panel. Verify conductor ratings match the 60 degrees C or 75 degrees C termination rating before landing wires.

Technical Specifications

• Bus Ampere Rating: 200A
• Number of Circuits: 30
• Phases: 3
• Wires: 4
• Voltage: 208Y/120 volts
• Breaker Space Size: 1 inch
• Conductor Rating: 60 degrees C / 75 degrees C
• Enclosure Type: Combination/Flush
• Panel Type: Main Lug Only (MLO)
• UPC: 783164189926

Standard Information

• Brand: ABB
• Manufacturer Part Number: TL30420C
