Abb THQMV225D 225a 2 Pole Molded Case Circuit Breaker

Product Description

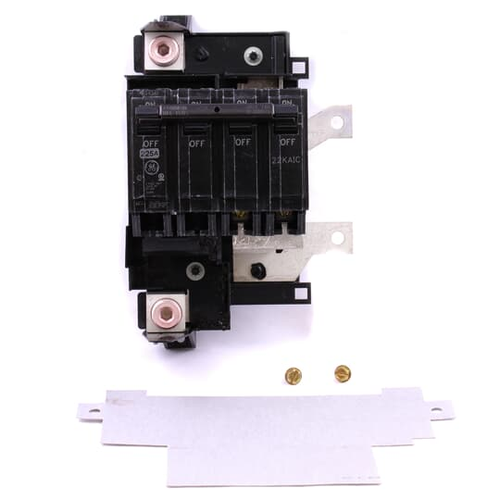

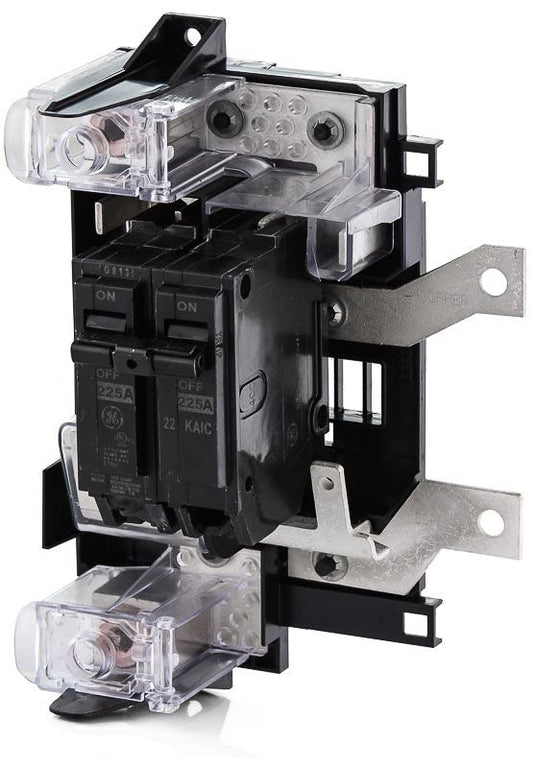

The ABB THQMV225D is a 2-pole, 225A main circuit breaker designed for residential and commercial applications. It provides thermal-magnetic protection with a 22kAIC rating at 120/240VAC, ensuring safe electrical distribution for high-capacity service entrances. This plug-on main breaker kit installs into GE PowerMark Gold load centers rated between 150A and 225A.

• Built for residential and commercial applications
• 2-pole, 225A main circuit breaker
• Thermal-magnetic protection

Product Highlights

Provides essential thermal-magnetic protection with a 22kAIC rating at 120/240VAC. Installs into GE PowerMark Gold load centers rated between 150A and 225A.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQMV225D

Technical Specifications

• Brand: ABB / General Electric
• Series: THQMV
• Part Number: THQMV225D
• Amperage: 225A
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 22kA @ 240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: GE PowerMark Gold Load Centers (150A-225A)
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 1 AWG - 300 kcmil (Cu), 2/0 AWG - 300 kcmil (Al)
• Max Wire: 300 kcmil
• Min Wire: 1 AWG (Cu), 2/0 AWG (Al)
• Available Options: Padlock Attachment
• Accessories: Mounting Base, Line Side Lugs Included, Mounting Hardware
• Standards: UL 489, RoHS Compliant
• Approval: UL
• Temp Rating: 60C to 75C
• Construction Features: Main Breaker, Common Trip, Quick-Make/Quick-Break, HACR Rated, High Interrupting Capacity, Reverse Feed
• Amperage Rating: 225 A
