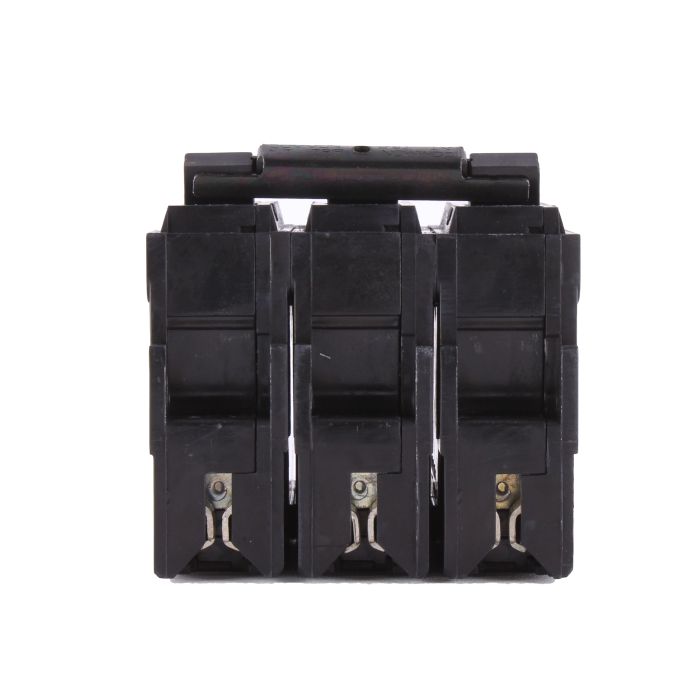

Abb thql32020 thql molded case circuit breaker 20 amp

Product Description

The ABB THQL32020 is a Q Line circuit breaker, a one-inch wide per pole, compact, thermal-magnetic device designed for residential and commercial applications. It features Quick-make / Quick-break mechanisms and easy to spot trip indication. The THQL32020 breaker features 3 poles, an ampere rating of 20 A, an interrupting rating of 10kAIC, and a voltage rating of 240V.

• Designed for residential and commercial applications
• Features Quick-make / Quick-break mechanisms
• Easy to spot trip indication

Product Highlights

The ABB THQL32020 circuit breaker ensures safety and reliability in a compact design.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL32020
• Country of Origin: UKN

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 240 V
• Amperage Rating: 20 A
• Number of Poles: 3
• Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac / 10kA@240 Vac
• Interrupt Capacity: 10 kA
• Trip Style: Non-Interchangeable
• Trip Function: LI
• Continuous Current Rated: Standard
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Phase: 1
• Wire Size: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
• Mounting Type: Plug-In
• Temperature Rating: 60/75 deg C
• Used On: AL Series Panelboard
• Approval: UL
• Terminal Type: Load Lug
• Type: Fixed Thermal Magnetic, Internal Common Trip
