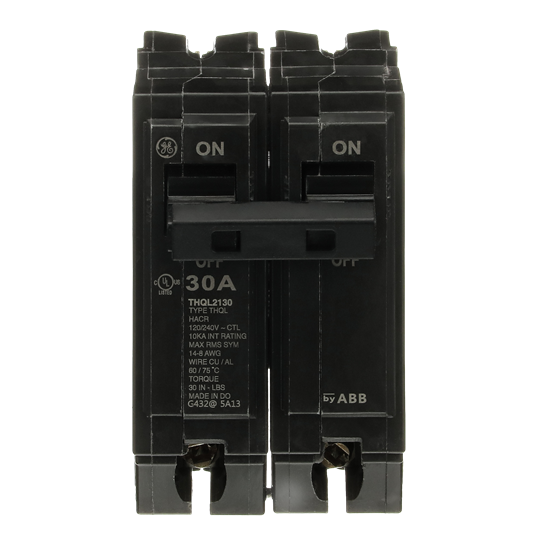

Abb THQL2130 2-pole 30A 120/240V Circuit Breaker

Product Description

The ABB THQL2130 is a 2-pole plug-in circuit breaker rated for 120/240-volt residential and light commercial electrical systems. It provides overcurrent and short-circuit protection for branch circuits in load centers and distribution panels. The THQL series is a standard plug-in design compatible with common residential panelboards. Licensed electricians install this breaker during new construction, panel upgrades, and circuit additions. At 30 amps, it is a common rating for circuits serving appliances such as dryers, water heaters, and HVAC equipment.

The THQL2130 is used in residential and light commercial applications where a 2-pole, 30-amp branch circuit breaker is required. It installs in load centers designed to accept THQL-style plug-in breakers. Typical scenarios include service panel upgrades, dedicated appliance circuit additions, and replacement of failed or tripped breakers in existing panels.

Key Features

• 2-pole configuration provides 240-volt protection for double-pole branch circuits
• 30-amp continuous current rating suits high-draw appliance and HVAC circuits
• Plug-in design for straightforward installation in compatible load centers
• Provides overcurrent and short-circuit protection per NEC requirements

Compatibility

Designed as an OEM-style replacement plug-in circuit breaker for residential and light commercial load centers that accept THQL-series 2-pole breakers.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel and verify the main breaker is off before handling any components inside the load center. Confirm the panelboard bus bar accepts THQL-style plug-in breakers before installation. Do not install this breaker in a panel that does not support the THQL plug-in design.

Technical Specifications

• Poles: 2
• Voltage Rating: 120/240 volts
• Amperage Rating: 30 amps
• Series: THQL
• UPC: 783164012927

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL2130
