Product Description

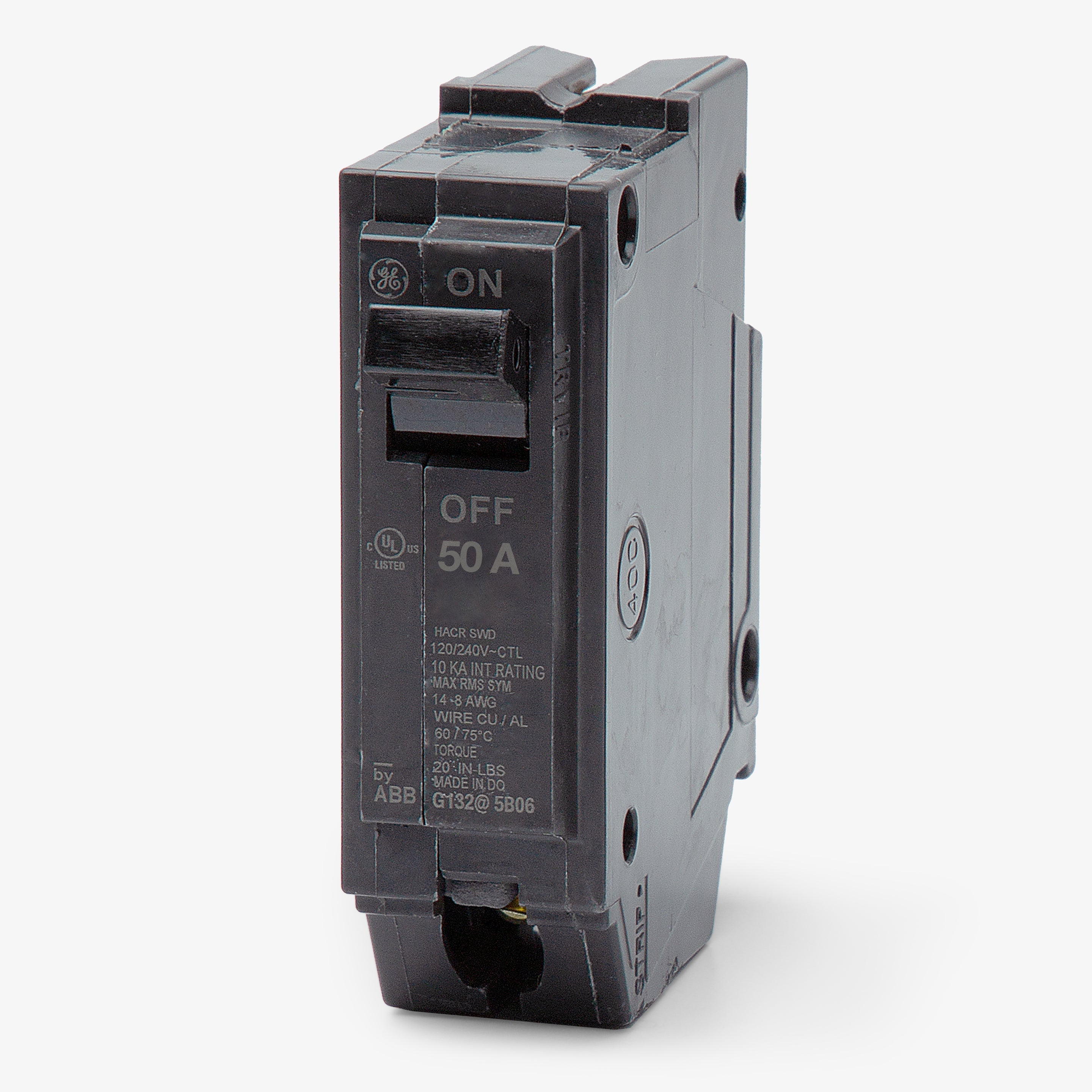

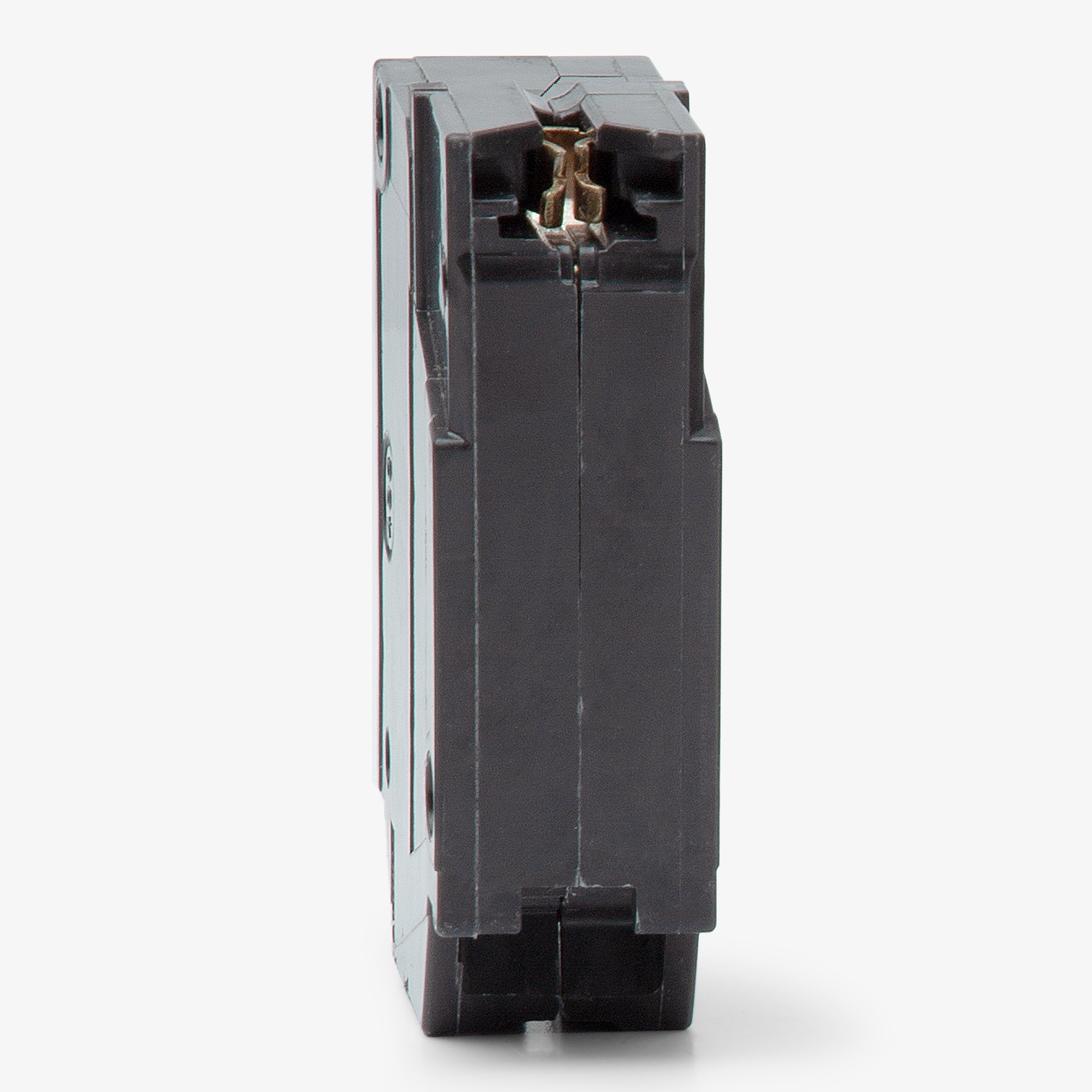

The ABB THQL1150 Q-Line circuit breakers are compact, thermal-magnetic devices designed for residential and commercial applications. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms and easy to spot trip indication. The THQL1150 breaker features 1 pole, an ampere rating of 50 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.
- Compact, thermal-magnetic devices
- Quick-make / Quick-break mechanisms
- Suitable for residential and commercial applications
Product Highlights
The ABB THQL1150 is ideal for installation in load centers or lighting panels. It provides reliable protection for standard 120/240VAC branch circuits.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: THQL1150
-
Country of Origin: china
Technical Specifications
-
Frame: Q-Line
-
Trip Type: LI
-
Trip Range: Non-Interchangeable
-
Load Rating: HACR
-
Voltage Rating: 120/240 V
-
Amperage Rating: 50 A
-
Number of Poles: 1
-
Interrupt Rating: 10kA@120 Vac / 10kA@120/240 Vac
-
Brand: ABB / General Electric
-
Series: THQL
-
Part Number: THQL1150
-
Phase: 1
-

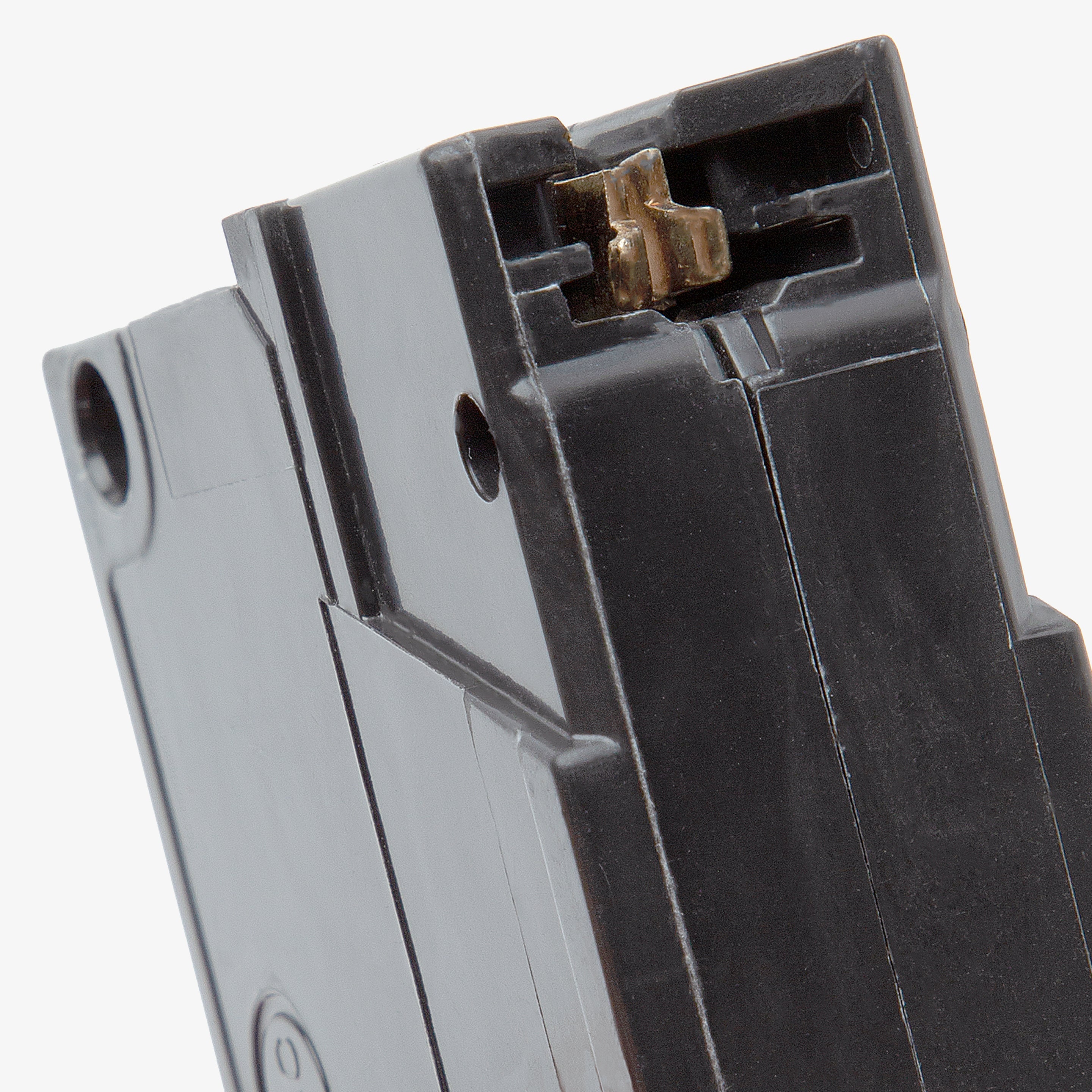

Mounting Style: Plug-On
-

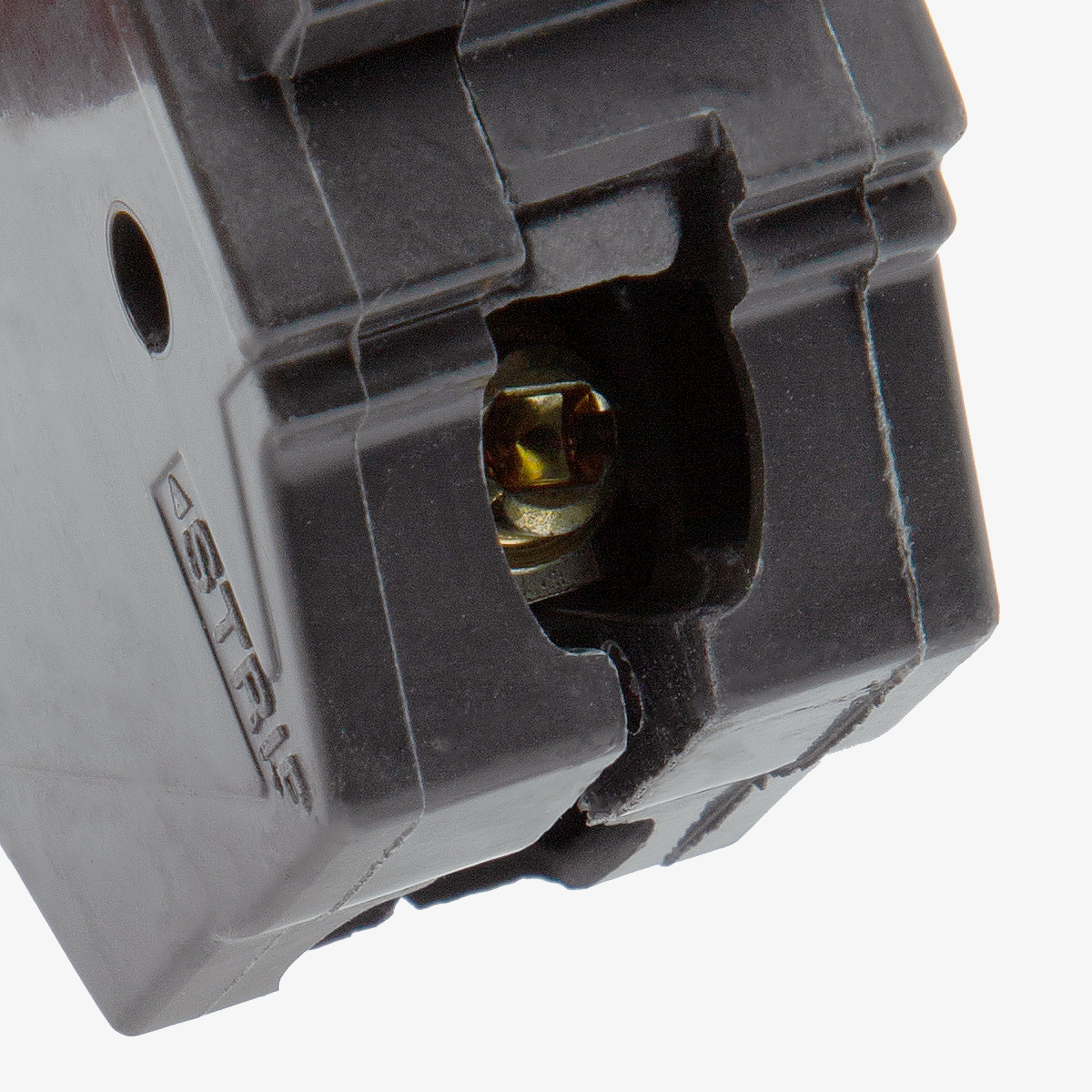

Terminal Type: Box Lugs
-
For Use With: GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 8-3 AWG (Cu), 8-3 AWG (Al)
-
Max Wire: 3 AWG
-
Min Wire: 8 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
-
Standards: Federal Specification WC-375B, HACR, NEMA AB 1, UL 489
-
Approval: CSA, UL
-
Temp Rating: 60C to 75C
-
Construction Features: HACR Rated, Quick-Make/Quick-Break
-
Category: Q-Line Miniature Circuit Breakers
-
Product Line: Q-Line (Plug-In)
-
System Voltage: 120 Vac
-
Continuous Current Rated: Standard
-
120 Vac Interrupting Rating: 10 KAIC
-
120/240 Vac Interrupting Rating: 10 KAIC
-
Suitable for Reverse Feed: Yes
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Protective Relays: No
-
Current Metering: No
-
Special Markings: HACR
-
UL File #: E11592
-
Current Rating: 50 Amps
-
Circuit Breaker Type: Standard
-
Smart Home Compatibility: Not Smart Home Compatible
-
Voltage: 120 Volts
