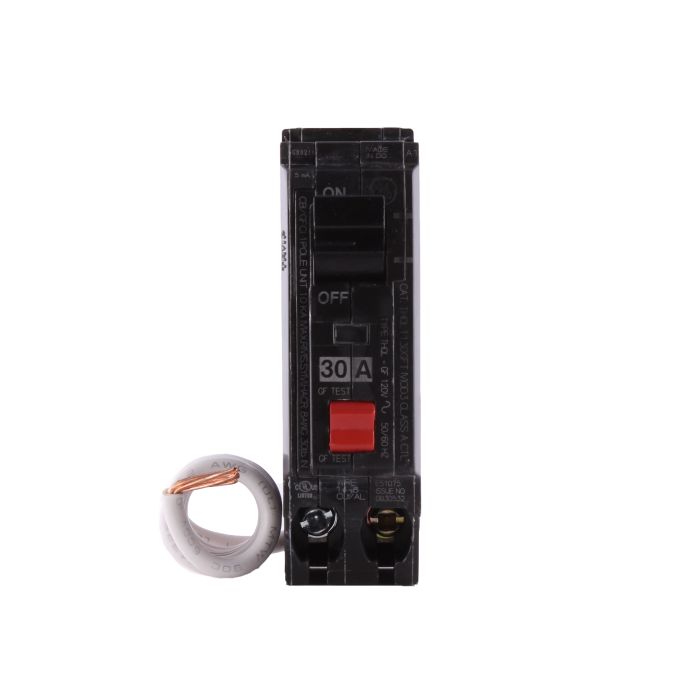

Abb THQL1130GFT THQL Self-Test GFCI Circuit Breaker 120 VAC 30 Amp 1 Pole

Product Description

The ABB THQL1130GFT is a Q-Line Type THQL Model 3 self-test ground fault circuit breaker. This 1-pole breaker is rated for 120 VAC, with a 30 A amperage and a 10 kA interrupt rating. It features a fixed thermal magnetic/non-interchangeable/LIG trip type.

• Self-Test GFCI Circuit Breaker
• Q-Line
• Type THQL Model 3

Product Highlights

Offers GFCI protection, overload and short circuit protection. Detects low-level electrical current leakage and quickly shuts off power.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL1130GFT

Technical Specifications

• Voltage: 120 VAC
• Amperage: 30 A
• Interrupt Rating: 10 kA
• Pole: 1
• Trip Type: Fixed Thermal Magnetic/Non-Interchangeable/LIG Trip
• Manufacturer: ABB Electrification
• Number of Poles: 1
• Type: Type THQL Model 3 Self-Test
• Frame: Q-Line
• Trip Range: 5 mA
• Phase: 1
• Wire Size: 14 to 8 AWG Cu, 12 to 8 AWG Al
• Mounting Type: Plug-In
• Amperage Rating: 30 A
• Voltage Rating: 120 VAC
