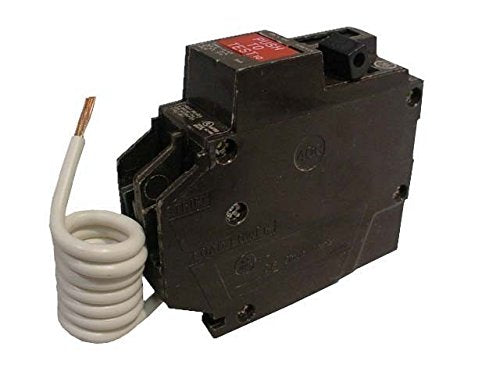

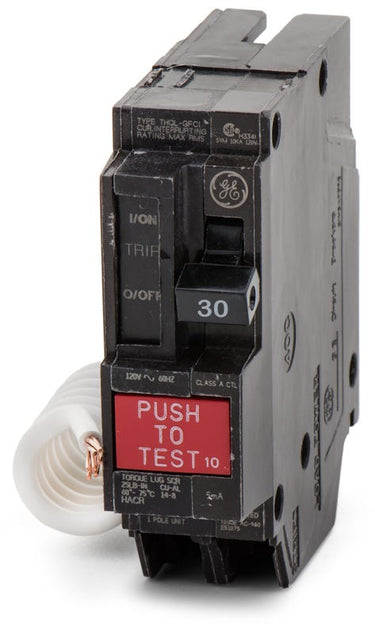

Abb thql1130gf circuit breaker 30A

Product Description

The ABB THQL1130GF is a 30-amp ground fault interrupter engineered to safeguard high-draw 120V circuits, delivering Class A 5mA protection. Ideal for dedicated equipment circuits in locations requiring strict NEC compliance for moisture exposure. It fits into GE PowerMark Gold load centers, A-Series panelboards, and AQ lighting panels.

• Engineered to safeguard high-draw 120V circuits
• 30-amp ground fault interrupter delivers Class A 5mA protection for personnel
• Fits into GE PowerMark Gold load centers, A-Series panelboards, and AQ lighting panels

Product Highlights

This circuit breaker is designed for residential and commercial applications, featuring quick-make/quick-break mechanisms and easy trip indication.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQL1130GF

Technical Specifications

• Sub Brand: Q Line CB3
• application: CB3 Ground Fault Circuit Interrupters (GFCI)
• Brand: ABB / General Electric
• Series: THQL
• Part Number: THQL1130GF
• Amperage: 30A
• Voltage: 120VAC
• Poles: 1
• Phase: 1
• AIC Rating: 10kA @ 120VAC
• Special Classification: GFCI
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: GE PowerMark Gold Load Centers, GE A-Series Panelboards, AQ Lighting Panels, ABB ReliaHome Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LIG
• Trip Function: Long-Time, Instantaneous, Ground Fault
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Padlock Attachment
• Accessories: Pigtail Neutral
• Standards: HACR, NEMA AB 1, UL 489, UL 943
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, Self-Test
