Product Description

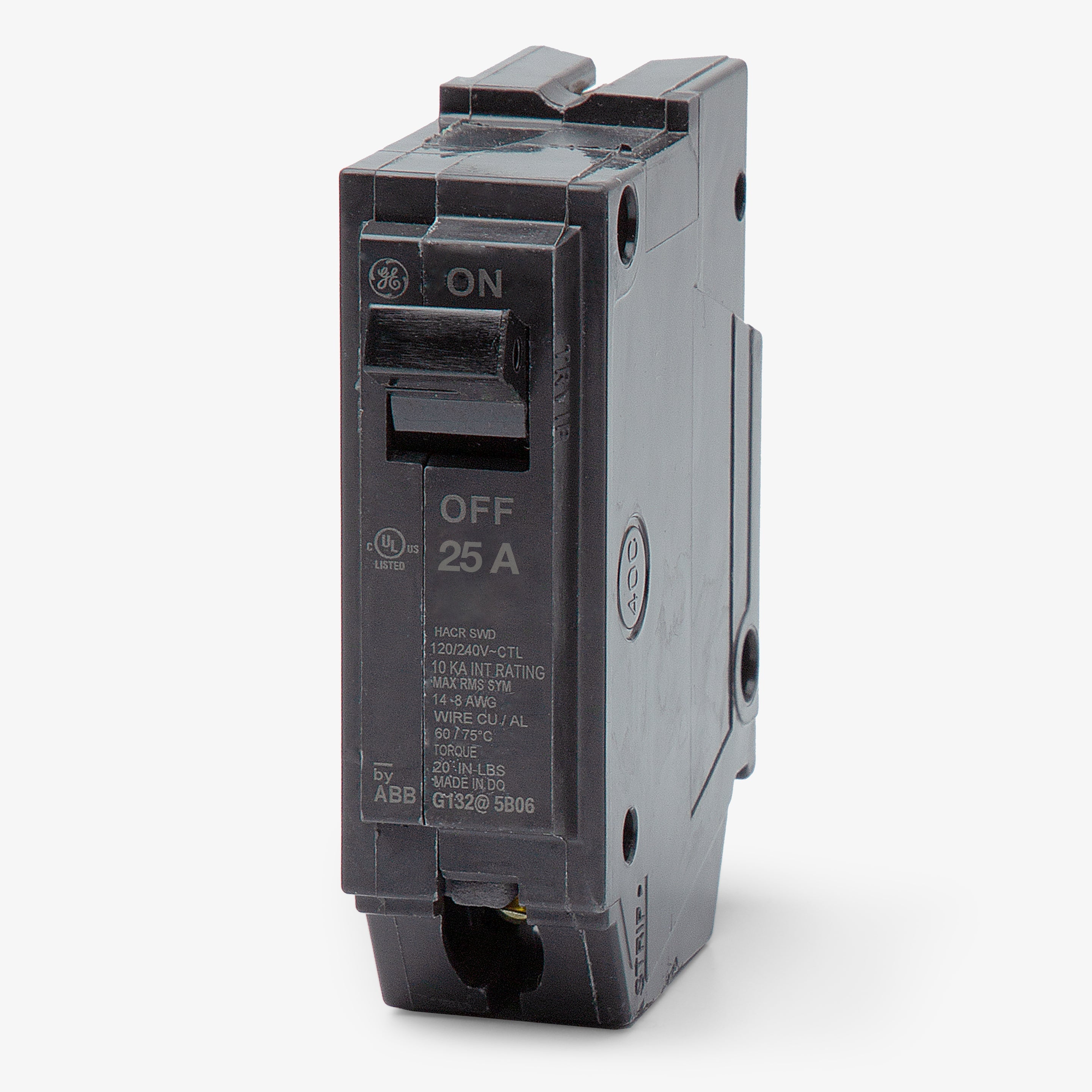

The ABB THQL1125 is a Q-Line THQL Series Single Pole Plug-In Circuit Breaker. Designed for residential and commercial use, it provides dependable protection for standard branch circuits. This plug-on unit fits GE PowerMark Gold load centers, ABB ReliaHome panels, and GE A-Series panelboards.
- Dependable protection for standard branch circuits
- Plug-on unit fits GE PowerMark Gold load centers, ABB ReliaHome panels, and GE A-Series panelboards
- Box lug terminals accept 14-8 AWG copper or 12-8 AWG aluminum wiring
Product Highlights
The THQL1125 circuit breaker features a quick-make/quick-break mechanism to minimize arcing and is HACR rated for HVAC equipment.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: THQL1125
-
Country of Origin: United States
Technical Specifications
-
Voltage: 120-240V
-
Poles: 1
-
Product Type: Circuit Breaker
-
Amperage: 25A
-
Category: Circuit Breakers
-
Type: Fixed Thermal Magnetic
-
Interruption Rating: 10kAIC
-
AIC: 10000
-
UL/CUL Listing: UL/CUL
-
Brand: ABB / General Electric
-
Series: THQL
-
Part Number: THQL1125
-
Phase: 1
-
AIC Rating: 10kA @ 120/240VAC
-

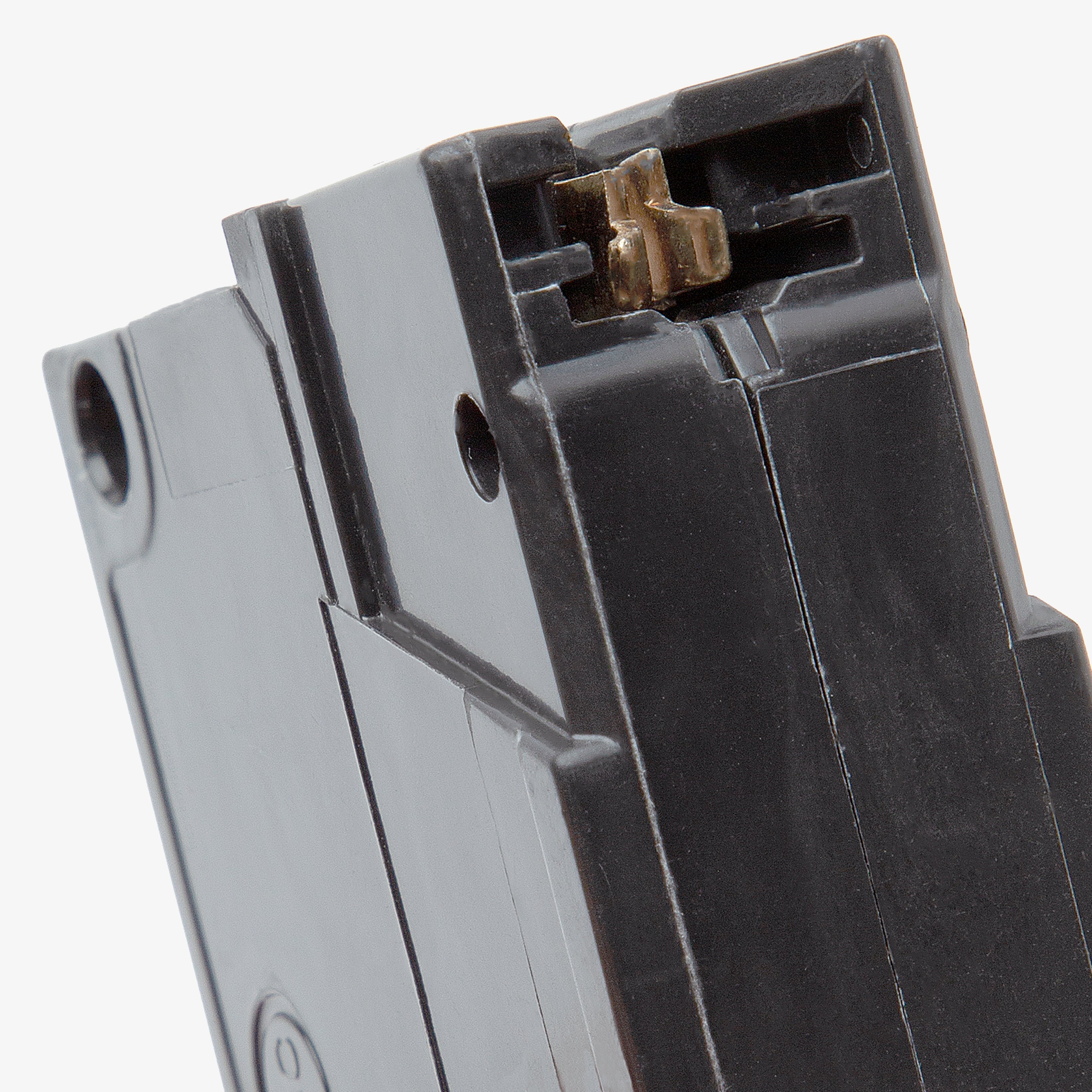

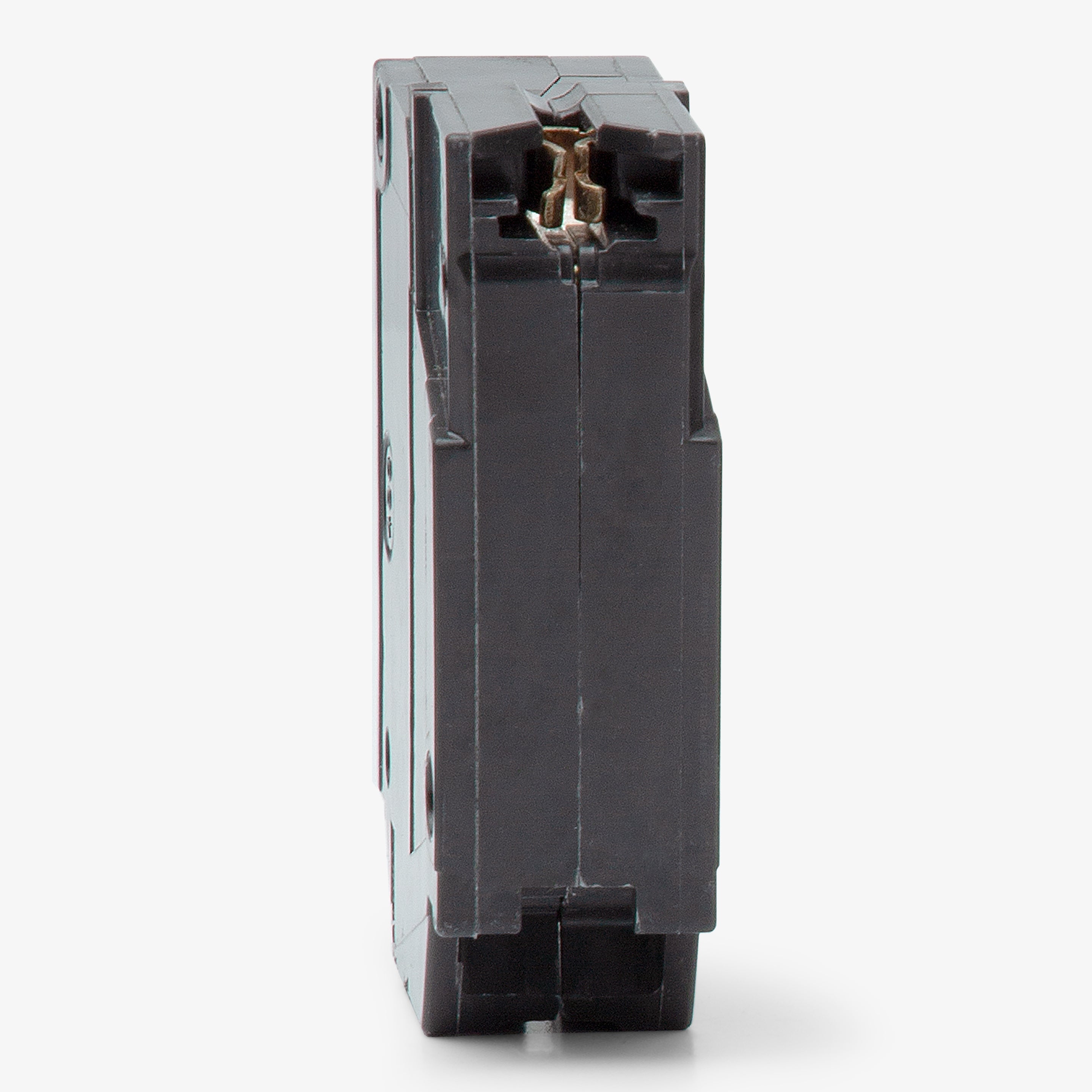

Mounting Style: Plug-On
-

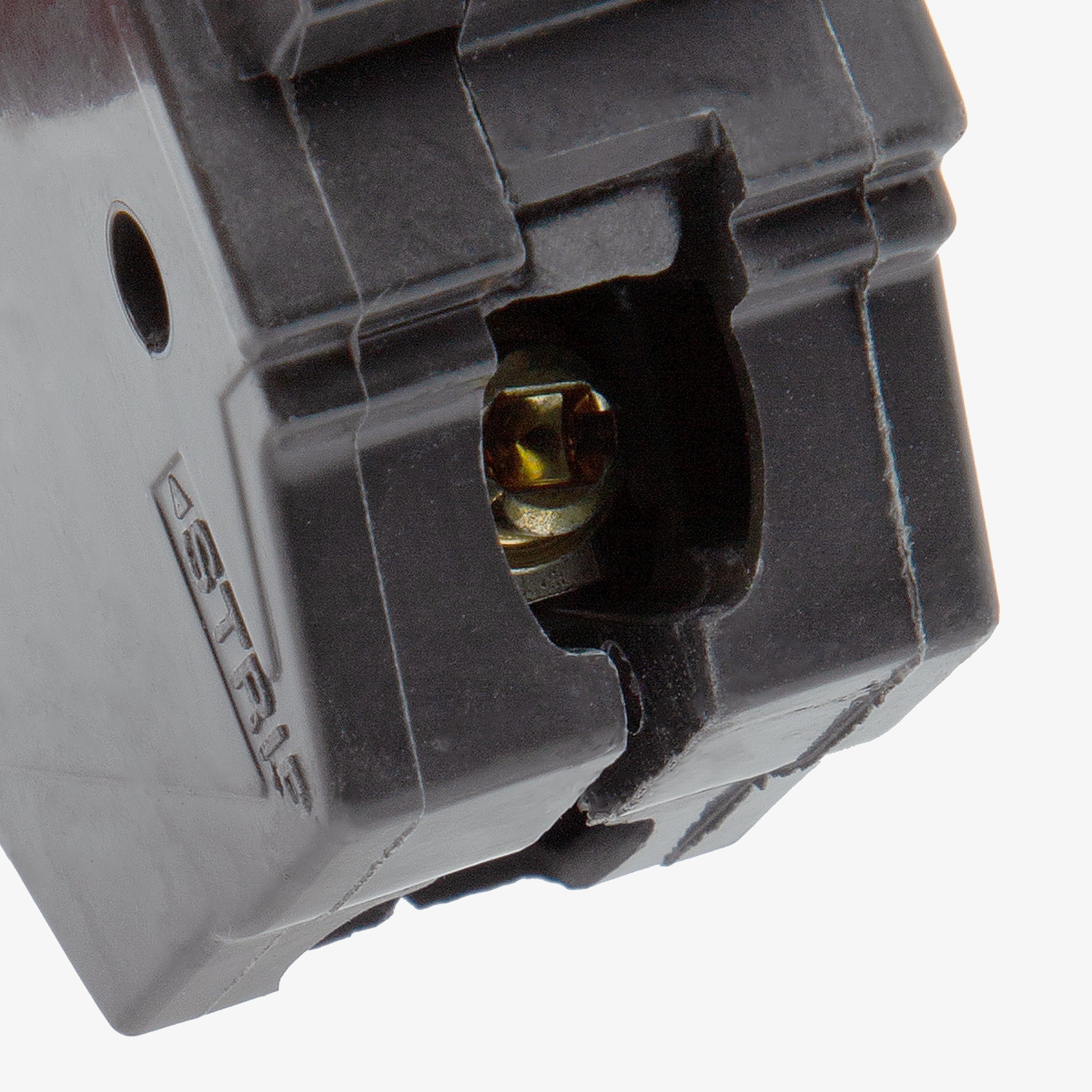

Terminal Type: Box Lugs
-
For Use With: GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG (Cu), 12 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
-
Standards: HACR, UL 489
-
Approval: UL
-
Temp Rating: 60C to 75C
-
Construction Features: HACR Rated, Quick-Make/Quick-Break
-
Volts AC: 120, 240
-
Amps: 25
-
Family / Style: Q Line
-
Interrupt Rating AC: 10 kA
-
Current Rating: 25 Amp
-
Voltage Rating: 120/240 Volt AC
-
Number Of Poles: 1
-
Mounting: 1 Inch Plug-In
-
Interrupting Rating: 10 Kiloamp
-
MPN: THQL1125
-
UPC: Does not apply
-
Condition: New
-
Country of Origin: United States
