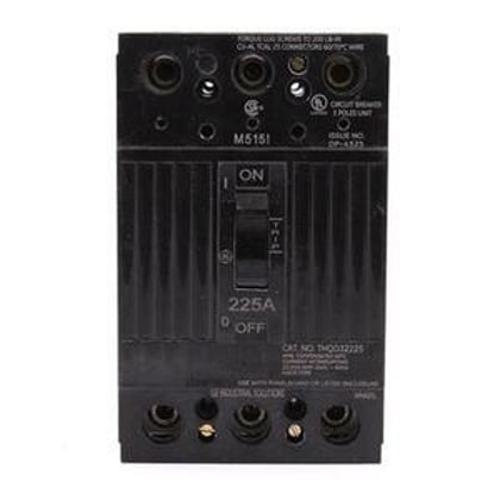

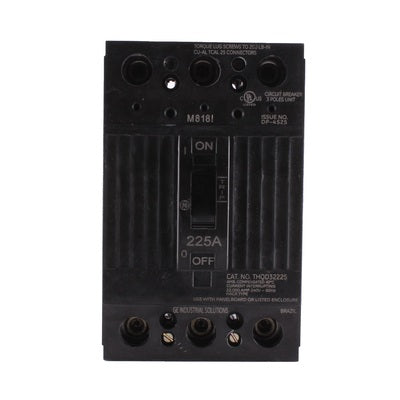

Abb THQD32225WL 3p 240v 22k Ic 225 amp w/lugs

Product Description

The ABB THQD32225WL is a thermal magnetic molded case circuit breaker complete with Cu/Al line and load lugs. It is designed for 240 VAC systems. The TQD Line of devices include thermal magnetic molded case circuit breakers and molded case switches. Rated at 225 amps.

• Higher Interrupting Rating: Commonly 22 kAIC, compared to the 10 kAIC typically found in standard THQL breakers.
• Thermal-Magnetic Trip: Utilizes a thermal-magnetic trip unit to provide protection against both overloads (thermal) and short circuits (magnetic).
• Bolt-On Mounting: Features a bolt-on mounting, securing them directly to the bus connections in load centers and lighting panels.

Product Highlights

The ABB THQD32225WL circuit breaker offers reliable protection with a high interrupting rating and durable construction. It is suitable for various applications requiring robust circuit protection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQD32225WL

Technical Specifications

• Product Line: Thermal Magnetic
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 225 A
• Poles: 3
• Trip Function: LI
• Continuous Current Rated: Standard
• 120/240 Vac Interrupting Rating: 22 KAIC
• 240 Vac Interrupting Rating: 22 KAIC
• Lugs: TCAL25
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Breaker Mechanism Type: Toggle
• Breaker Number of Poles: Three Pole
• Breaker Voltage Rating: 240 VAC
• Breaker Amperage Rating: 225 Amp
• Manufacturer: ABB
• Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
• Voltage Rating: 240 V
• Maximum AC Voltage Rating: 240 V
• Current Rating: 225 Ampere
• Number of Poles: 3
• Interrupting Rating: 22 Kiloampere
• Terminal Type: Copper/Aluminum Line and Load Lug
• Approval: UL
