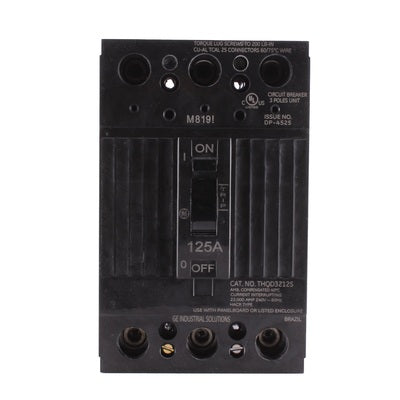

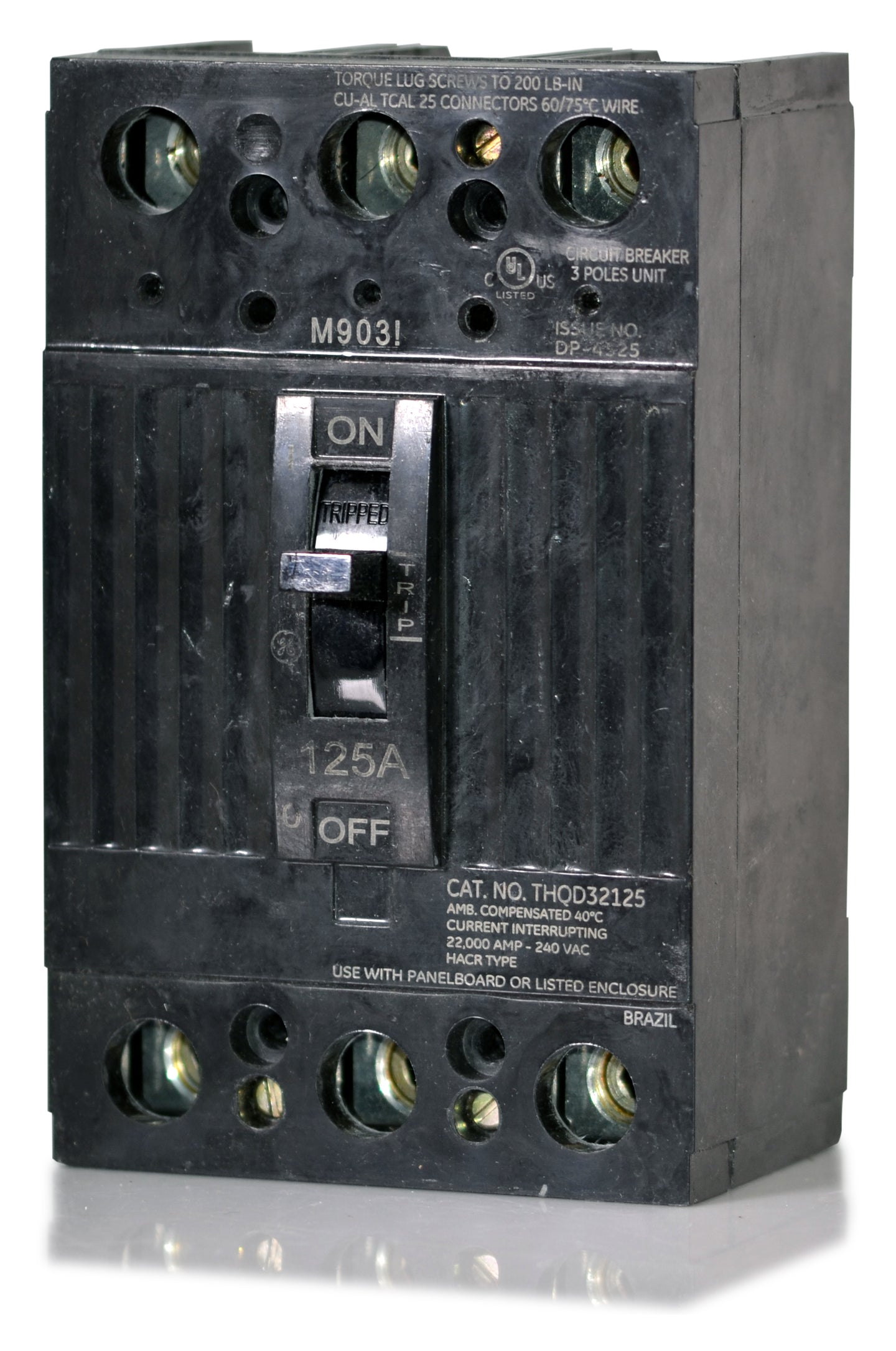

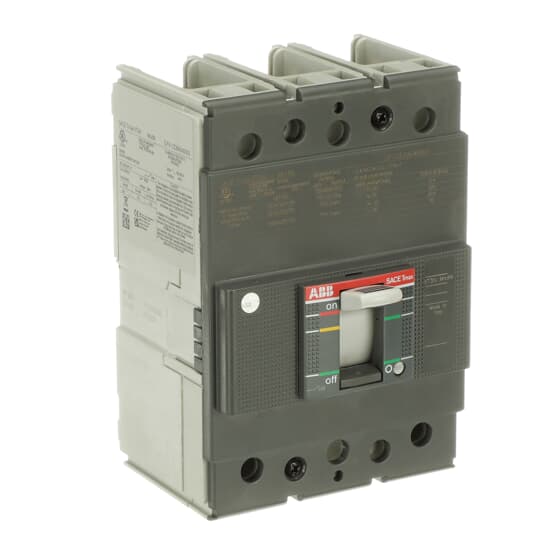

Abb THQD32125WL 3p 240V 22k IC 125 amp w/lugs

Product Description

The ABB THQD32125WL is a thermal magnetic molded case circuit breaker complete with Cu/Al line and load lugs. Engineered for commercial applications, it provides reliable protection with a thermal-magnetic trip unit featuring long-time and instantaneous (LI) functions. This unit mount MCCB installs into individual enclosures and switchboards.

• Provides protection against overloads and short circuits.
• Features fixed long-time and instantaneous trip functions.
• Designed for 240 VAC systems and compatible with Westinghouse, Challenger, and Bryant load centers.

Product Highlights

The ABB THQD32125WL circuit breaker offers reliable protection for commercial applications with its thermal-magnetic trip unit and compatibility with various load centers.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQD32125WL

Technical Specifications

• Category: Q-Line Miniature Circuit Breakers
• Product Line: Thermal Magnetic
• GO Schedule: EF
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 125 A
• System Voltage: 240 Vac
• Poles: 3
• Trip Function: LI
• Continuous Current Rated: Standard
• 240 Vac Interrupting Rating: 22 KAIC
• Lugs: TCAL25
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
• Brand: ABB / General Electric
• Series: THQD
• Voltage: 120VAC, 240VAC, 120/240VAC
• Phase: 3
• AIC Rating: 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC
• Mounting Style: Unit Mount
• Terminal Type: Lugs
• For Use With: Enclosures, Individual Mounting, Switchboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 4 AWG - 300 kcmil (Cu/Al)
• Max Wire: 300 kcmil
• Min Wire: 4 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment
• Accessories: Line and Load Lugs (TCAL25)
• Standards: UL 489, CSA C22.2 No. 5, NEMA AB 1
• Approval: CSA, HACR, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Common Trip, Non-Interchangeable Trip, High Interrupting Capacity
• Breaker Mechanism Type: Toggle
• Breaker Number of Poles: Three Pole
• Breaker Voltage Rating: 240 VAC
• Breaker Amperage Rating: 125 Amp
• Component: Miniature Circuit Breaker
• Breaker Function: LI
• Manufacturer: ABB
• Interrupt Rating AC: 22 kA
• Mounting: Panel
• Type: Breaker, Cable-In / Cable-Out, Miniature Industrial
• Volts AC: 120, 240
