Abb THQB32025 name 25A

Product Description

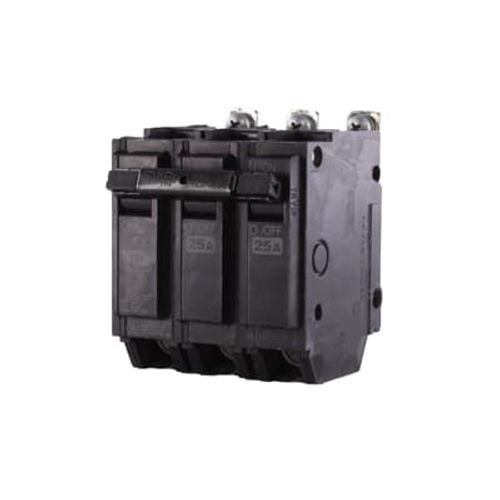

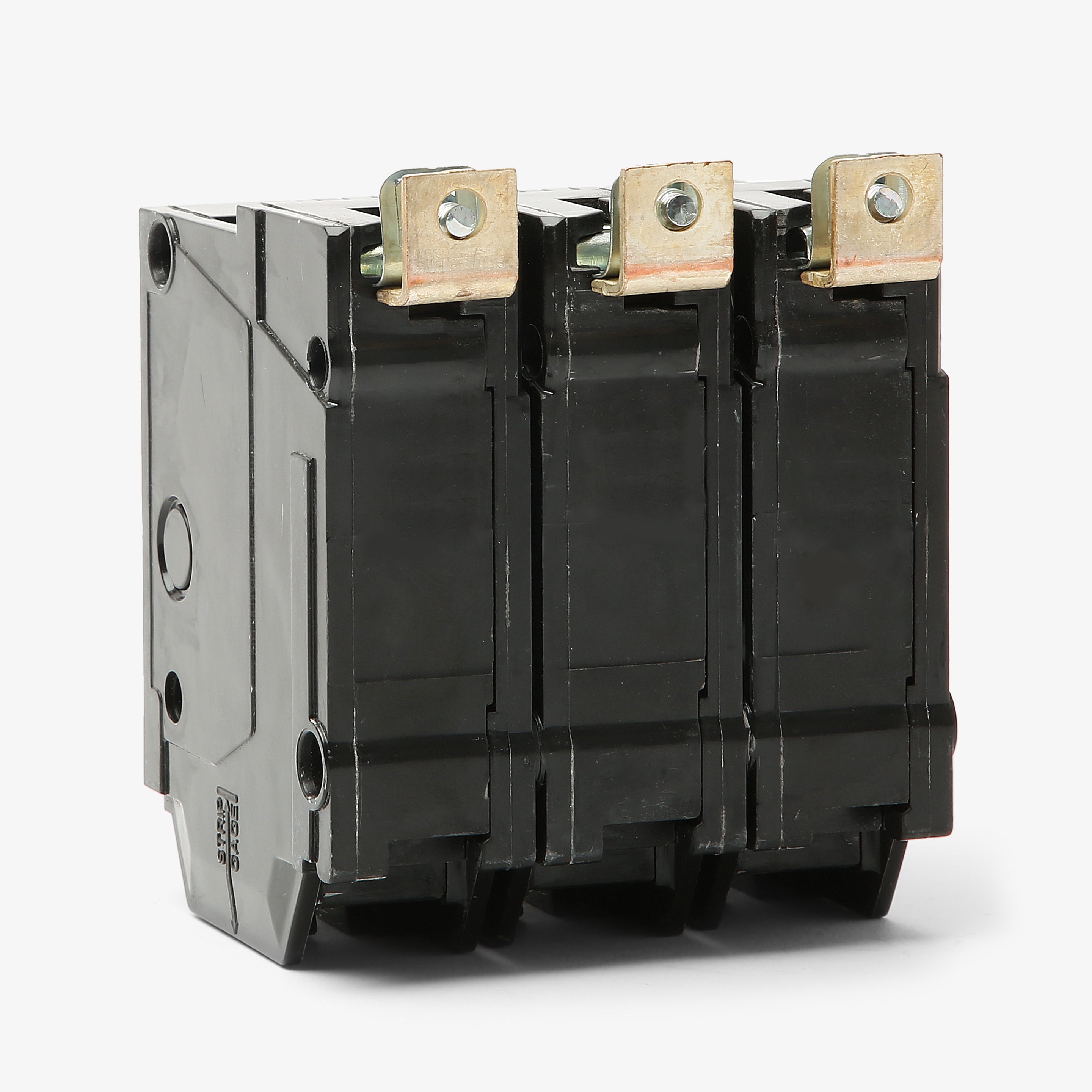

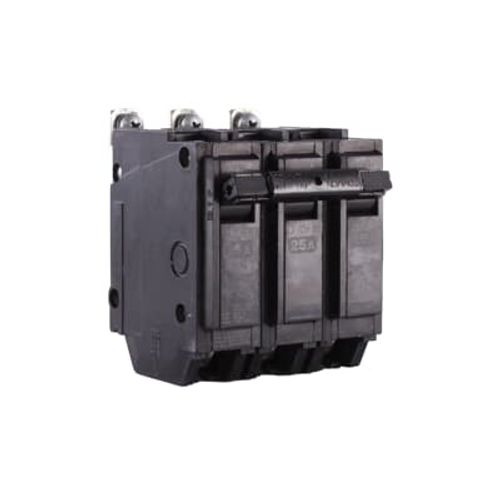

The ABB THQB32025 is a Q line circuit breaker, one-inch wide per pole, compact, thermal-magnetic device designed for residential and commercial applications. It features Quick-make / Quick-break mechanisms and common trip bars. The breaker is a bolt-on version of the Q Line used for bolting to bus connections.

• Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications.
• The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels.
• All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability.

Product Highlights

The ABB THQB32025 circuit breaker is designed for residential and commercial applications. It features a quick-make/quick-break mechanism and is bolt-on.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQB32025

Technical Specifications

• Voltage: 120-240V
• Product Type: Circuit Breaker
• Amperage: 25 A
• Poles: 3
• Category: Q-Line Miniature Circuit Breakers
• Product Line: TEY / Q-Line (Bolt-On)
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• System Voltage: 120 Vac
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• 240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• Brand: ABB
• Current Rating: 25 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Bolt-On Mount
• Number of Poles: 3
• Smart Home Compatibility: Not Smart Home Compatible
• Series: THQB
• Part Number: THQB32025
• AIC Rating: 10kA @ 240VAC
• Mounting Style: Bolt-On
• Terminal Type: Box Lugs
• For Use With: GE A-Series Panelboards, GE AQ Lighting Panels
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Adjustability: Fixed
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
• Accessories: Load Side Lugs Included
• Standards: CSA C22.2 No. 5, HACR, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Internal Common Trip, Quick-Make/Quick-Break
• Number in Pack: 1
