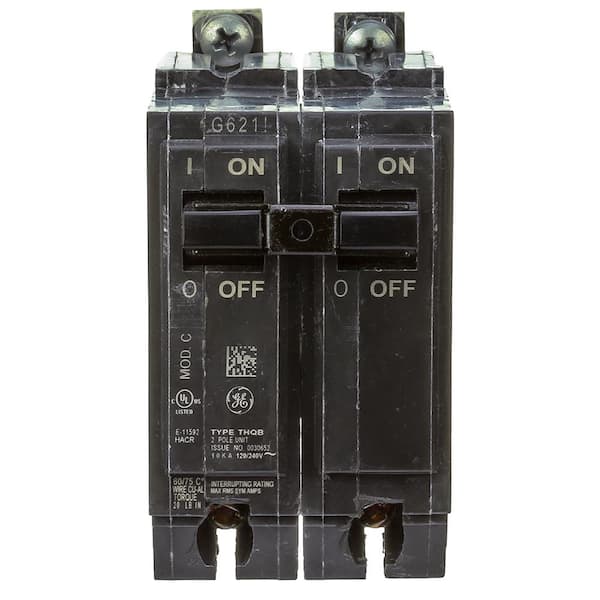

Abb THQB2135 thqb mcb 35A 10ka 2p 120/240v

Product Description

The ABB THQB2135 Q line circuit breakers are compact, thermal-magnetic devices designed for residential and commercial applications. These one-inch wide per pole breakers feature Quick-make / Quick-break mechanisms and common trip bars. Easy to spot trip indication ensures safety and reliability. This 2-pole breaker is rated for 35A and 120/240V systems with a 10kA interrupting rating.

• Compact thermal-magnetic devices
• Quick-make / Quick-break mechanisms
• Common trip bars
• Easy to spot trip indication

Product Highlights

Compact thermal-magnetic circuit breaker with quick-make/quick-break mechanisms for safety and reliability in residential and commercial applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQB2135
• Country of Origin: UKN

Technical Specifications

• MPN: THQB2135
• Brand: ABB
• Amperage: 35 A
• Product Type: Circuit Breaker
• Poles: 2
• Voltage: 240 Volts
• Category: Q-Line Miniature Circuit Breakers
• Product Line: TEY / Q-Line (Bolt-On)
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• System Voltage: 120 Vac
• 120/240 Vac: 120/240 Vac
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
• UL File #: E11592
• Mounting Type: Bolt-On Mount
• Number Of Poles: 2
• Circuit Breaker Type: Standard
• Maximum Amperage (A): 35
